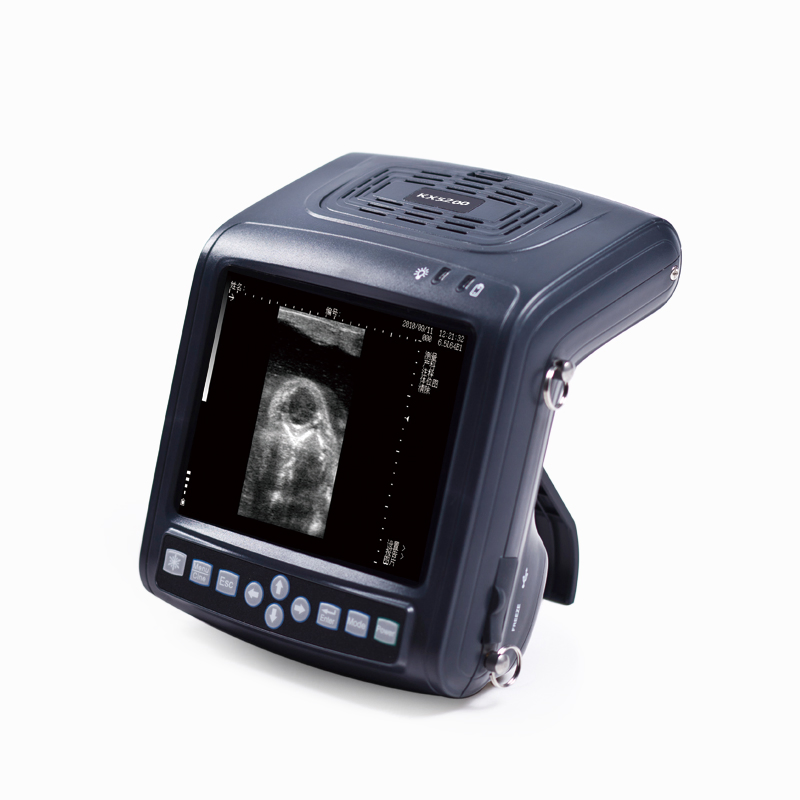

Veterinary Instrument B Mode Ultrasonic Diagnostic Instrument

1 / 5

Veterinary Instrument B Mode Ultrasonic Diagnostic Instrument

Customization:	Available
Certification:	ISO13485
Type:	Veterianry Ultrasonic Diagnostic Instrument

Send Inquiry

Product Description

Basic Information

Model NO.

KX5200

Veterinary Instrument

for Bovine, Equine, Swine, Goat, Canine

Internal Battery

With Internal Battery

Veterinary Ultrasound

Wrist Design, Smart and Light

Animal Clinic

Test Animal Urine Diease

Use

Veterinary Use Ultrasound

Origin

China

HS Code

901812100

Product Description

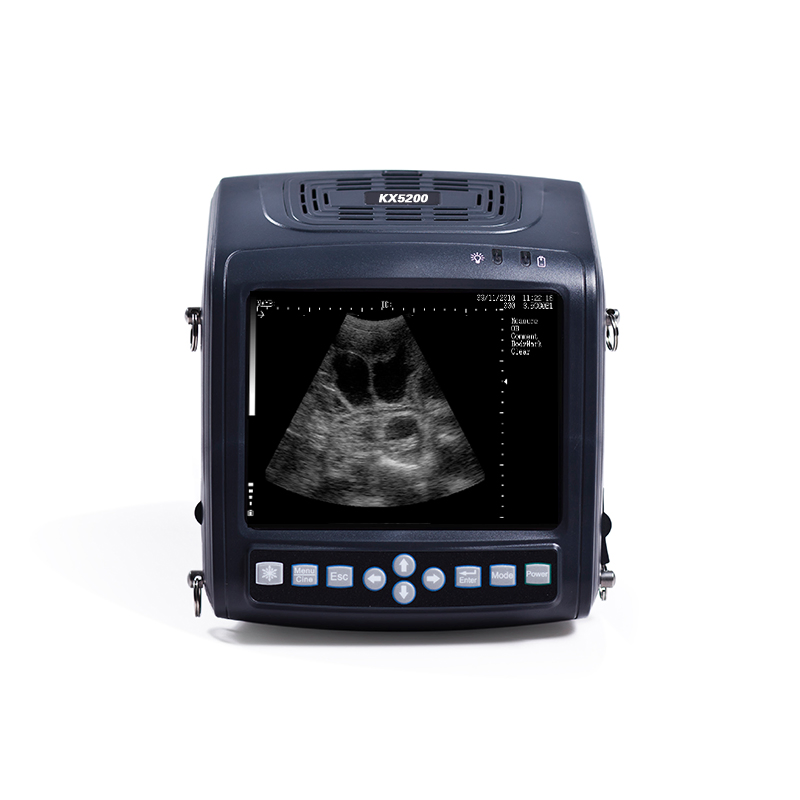

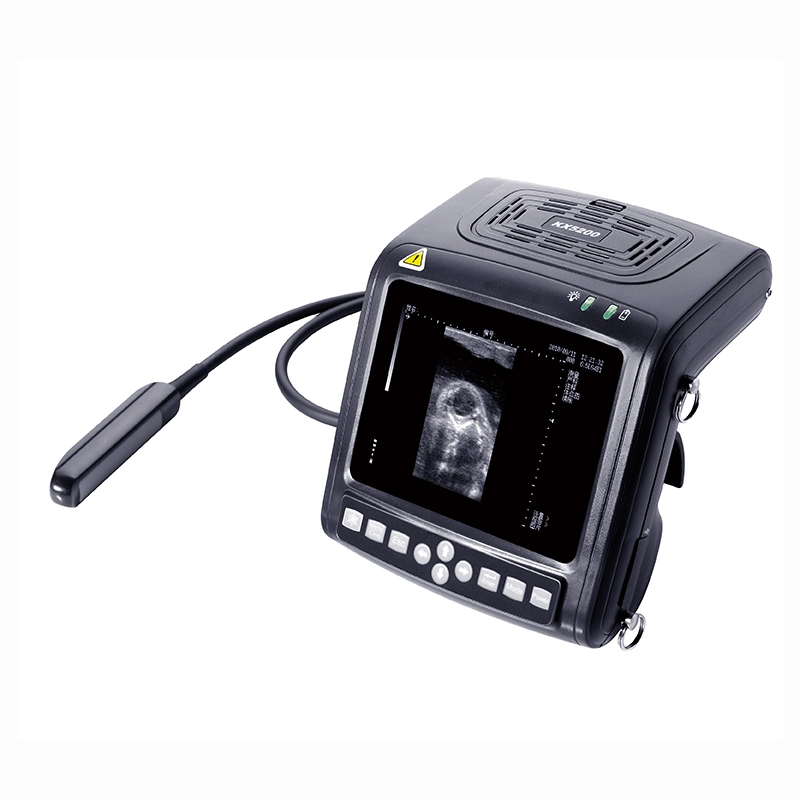

Full Digital B Mode Ultrasonic Diagnostic Instrument

KX5200 VET USE

Designed widely for diagnosing of pregnancy, fertility and disease on Bovine, Equine, Ovine, Canine, Feline, Goat, Swine, Llama and other animals.

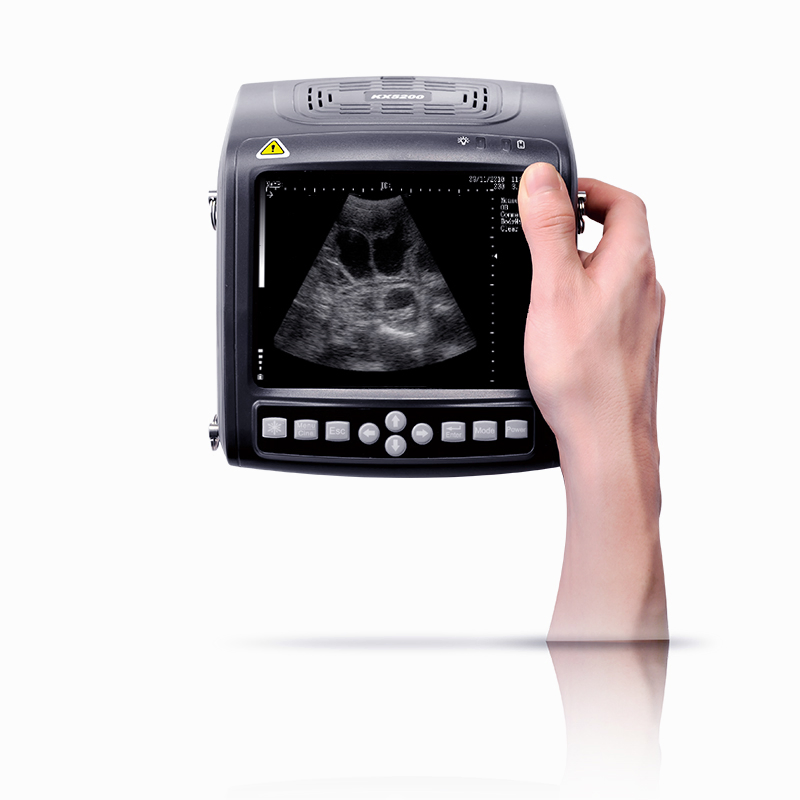

Wrist DesignTruly innovative and portable for field use.

Smart and Light5.7" high resolution color LCD, only 1.1kg weight.

No Fan DesignAvoids cross-infection for viruses in clinical environments.

Dual BatteryIncludes 2 pcs internal li-batteries for up to 5 hours of work.

USB ConnectivityDirectly store images to U disk via integrated USB port.

Gridding CalculateQuick measurement by eye using the grid function.

Technical Specification

Parameter	Description
Monitor	5.7" High resolution color LCD, high brightness, wide visual, suitable for outdoor use.
Body Marks	27 kinds of body marks with probe position (Bovine, Canine, Equine, Feline, Cardiology, Swine).
Display Mode	B, 2B, 4B, B/M, M (Total 5 kinds)

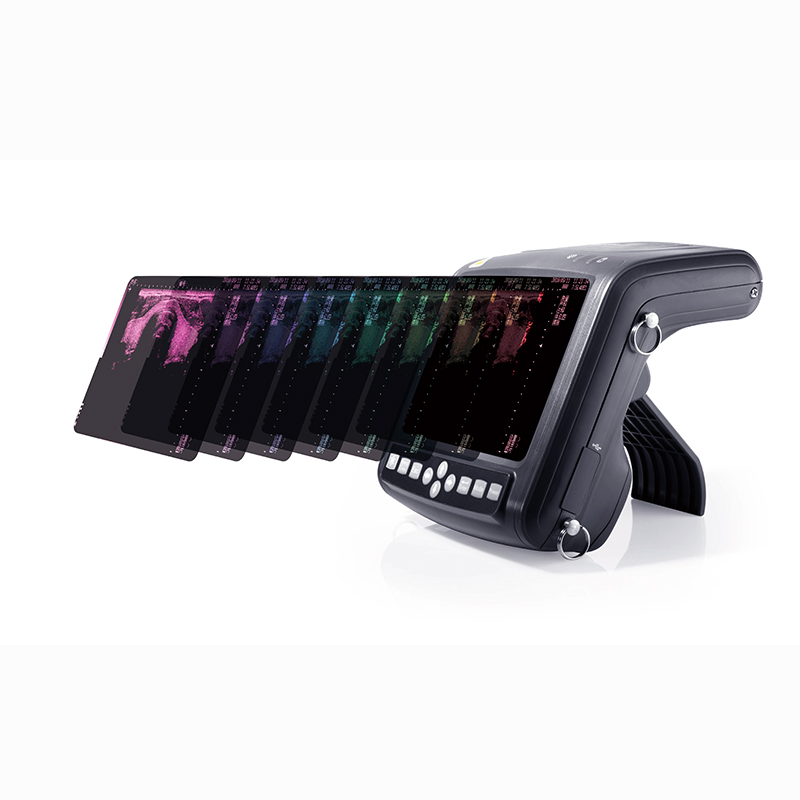

Pseudo-color	8 kinds (including B/W)
Gain Range	0~127dB
Dynamic Range	27~90dB
Gray Scale	256 Levels
Language	Chinese/English switchable
Probe Socket	Single socket, automatic probe identification.
USB Port	Supports one-key storage to USB and direct connection to laser printers.

Measurement and Analysis

General Measurement: Distance, Perimeter, Area (trace/ellipse), Volume, etc.
Cardiac Measurement: Depth, slope, heart rate, time.
OB Measurement: EDD and GA for Bovine, Equine, Ovine, Canine, Feline, Goat, Swine and Llama.
Specialized Functions: Automatically calculate Back fat and Lean percentage of swine.
Convenience: Automatically save last parameters for immediate next-use; OB report function.

Product Configurations

Standard Package

1	Main Unit
2	6.5MHz Linear Rectal Probe
3	Power Adapter
4	Internal Battery (2 pcs)
5	Leather Case
6	Base Charger, Belt, Bracket, Shutter Release

Optional Accessories

1	4.0Mhz Convex Rectal Probe
2	6.5MHz Micro-convex Probe
3	3.5MHz Convex Probe
4	7.5MHz Linear Probe
5	Thermal Printer
6	Battery (2400mAH) & Suitcase

KX5200 Veterinary Ultrasound Application

FAQ

What animals is the KX5200 ultrasound suitable for?

The KX5200 is designed for a wide range of animals including Bovine (cattle), Equine (horses), Ovine (sheep), Canine (dogs), Feline (cats), Goat, Swine (pigs), and Llama.

How long can the device operate on battery power?

The standard configuration includes 2 internal lithium batteries, providing approximately 5 hours of continuous working time, making it ideal for outdoor field use.

Is the screen visible in bright outdoor conditions?

Yes, the device features a 5.7" high-resolution color LCD with high brightness and contrast, specifically designed for wide-angle viewing in outdoor veterinary environments.

Can I export images directly from the device?

Yes, the KX5200 includes a USB port that supports one-key storage of images directly to a U disk. It can also connect to a color laser printer for immediate reporting.

Does the device support back-fat measurement for swine?

Yes, the software includes specialized measurement functions that automatically calculate the Back fat and Lean percentage for swine.
