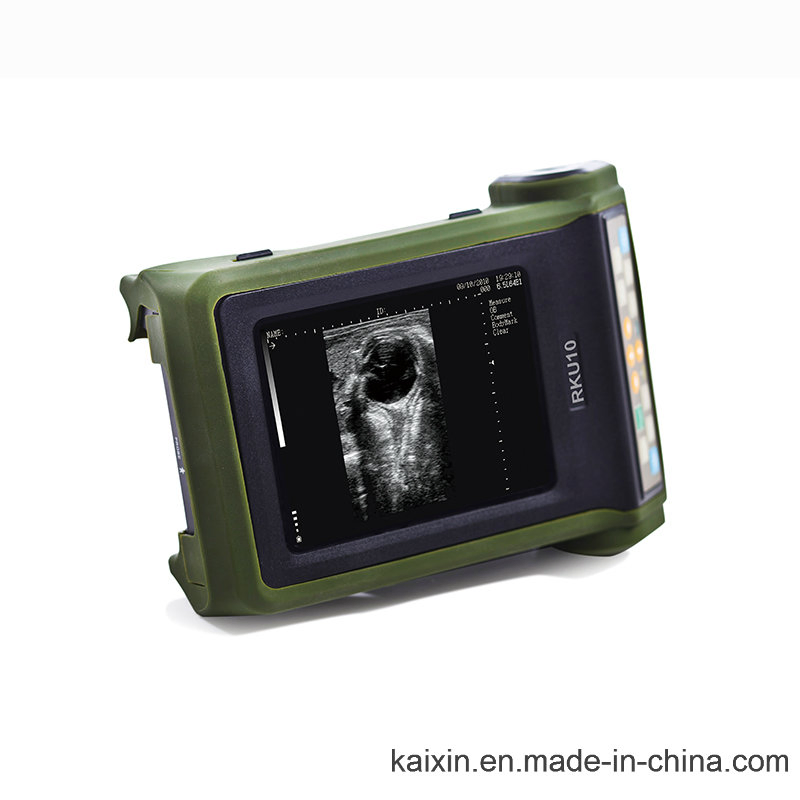

Rku10 Veterinary Ultrasonic Diagnostic Instrument for Bovine

1 / 5

Rku10 Veterinary Ultrasonic Diagnostic Instrument for Bovine

Customization:	Available
Certification:	ISO13485
Veterinary Instrument:	Use for Cow, Horse, Goat, Swine

Send Inquiry

Product Description

Basic Specifications

Model NO.

RKU10

Design

Palm Ultrasound, Ring Design, Smart and Light

Clinical Use

For Animal Diagnostic

Application

Check Pregnancy, Urine Disease of Animal

Battery

Internal Lithium Battery

Weight

Net Weight: 1.1KG

Origin

China

HS Code

9018121000

Product Overview

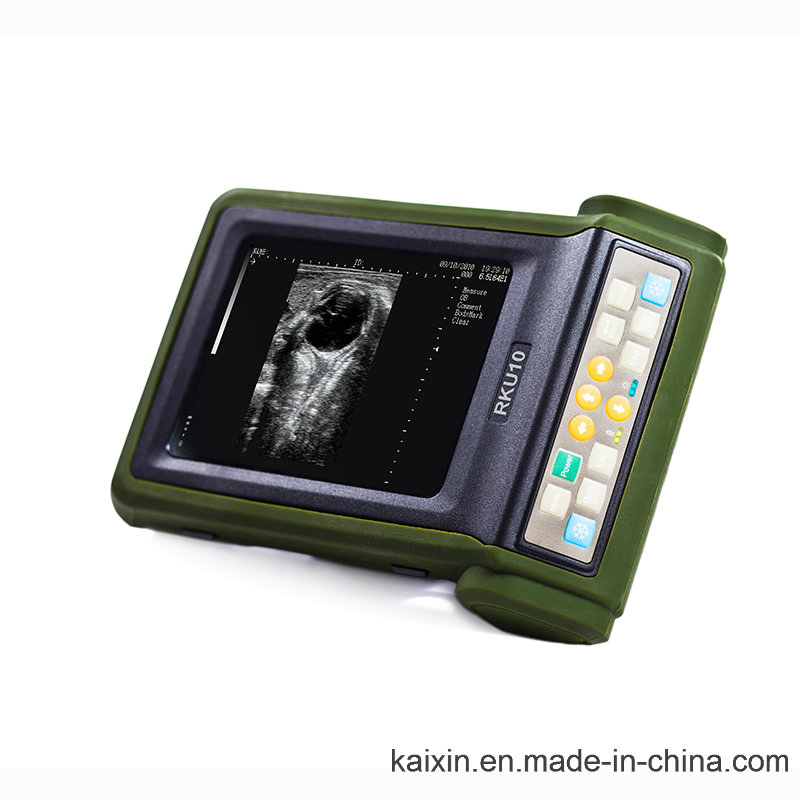

RKU 10 Veterinary Ultrasound Scanner (RING KING ULTRASOUND)

The RKU 10 is a versatile diagnostic tool widely used for abdominal and pregnancy ultrasound. It is specifically designed for pregnancy checks and follicular aspiration in large animals including bovine, equine, ovine, canine, feline, goat, swine, and llama.

Key Features

Ultra-lightweight design: Only 1.1kg, smart and portable.

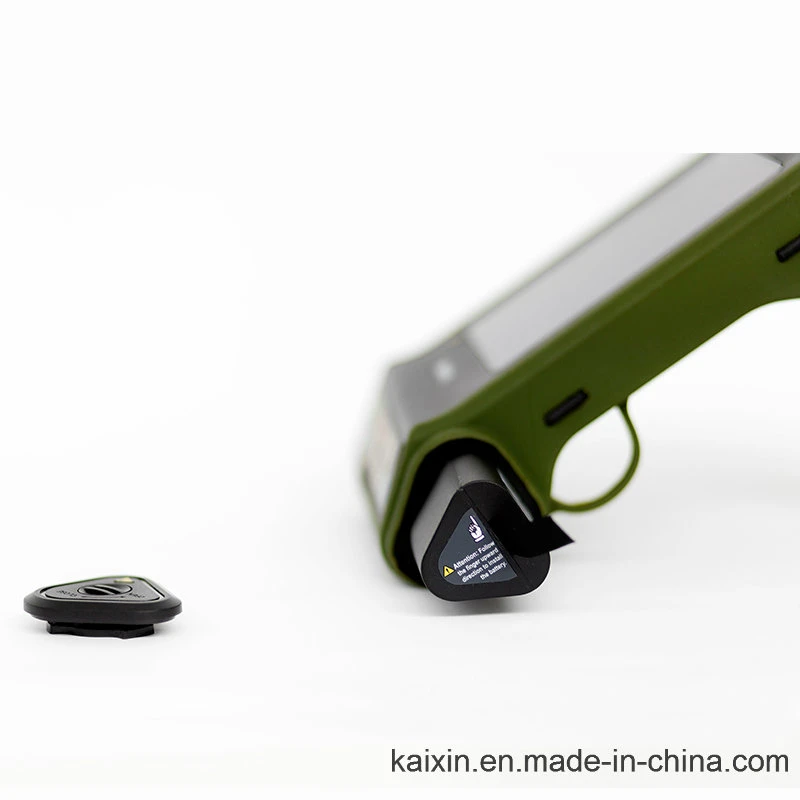

High-capacity lithium battery supporting more than 6 hours of continuous work.

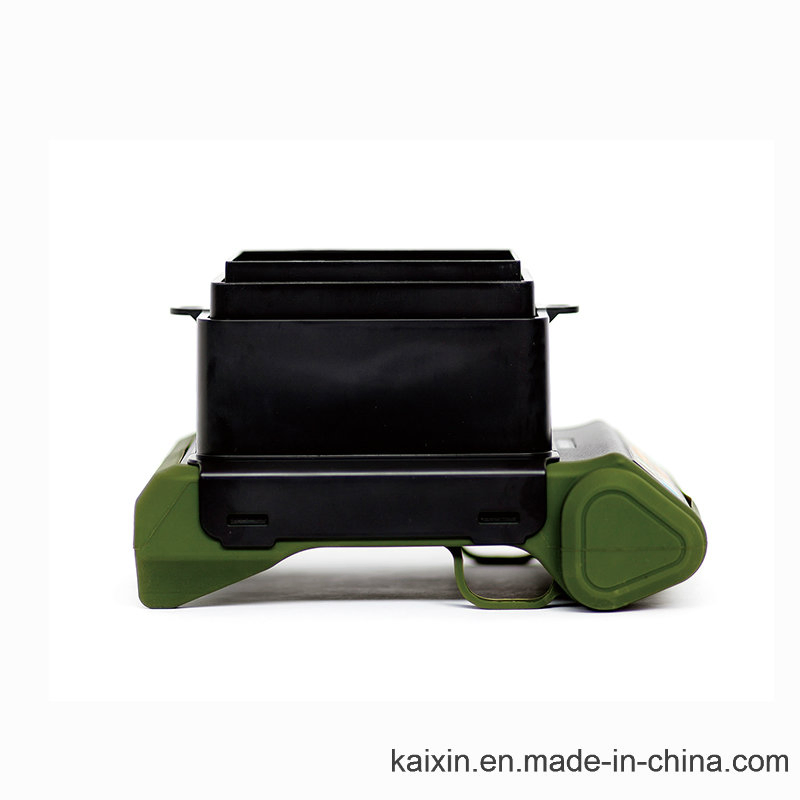

Equipped with a sunshine cover for clear outdoor visibility.
Ambidextrous design for left or right-hand use to reduce fatigue.
Multiple carrying methods: hand-held, chest hanging, back hanging, or waist hanging.
Optional professional ultrasound goggles for diverse outdoor requirements.
Robust construction with soft rubber coating: splash-proof and dust-proof.
Advanced software: 2 filter functions, 7 compression curves, and automatic calculation of back fat and lean percentage for swine.

Technical Specifications

Parameter	Specification Details

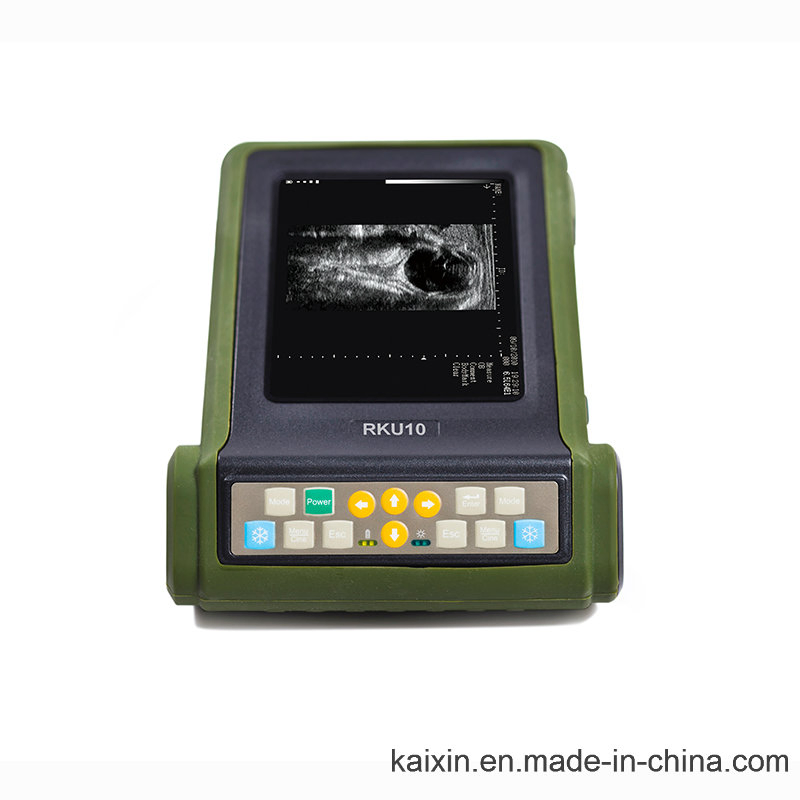

Monitor	5.7" high resolution LED, high brightness/contrast, wide viewing angle
Display Mode	B, 2B, 4B, B/M, M
Gain / Contrast	Gain: 0~127dB \| Contrast: 27~90dB
Magnification	0.8, 1.0, 1.2, 1.5, 1.6, 2.0, 2.4, 3.0
Storage & Cine Loop	100 frames permanent storage \| 256 frames cine loop
Measurements	Distance, circumference, area, volume, heart rate, cycle
OB Measurement	Cattle, dogs, horses, pig, cats, goats, camels, sheep
Swine Specific	Back-fat and lean automatic calculation function
Grid Measurement	6 types (Point grid, line grid, 10mm/2mm point rulers, etc.)

Configuration Options

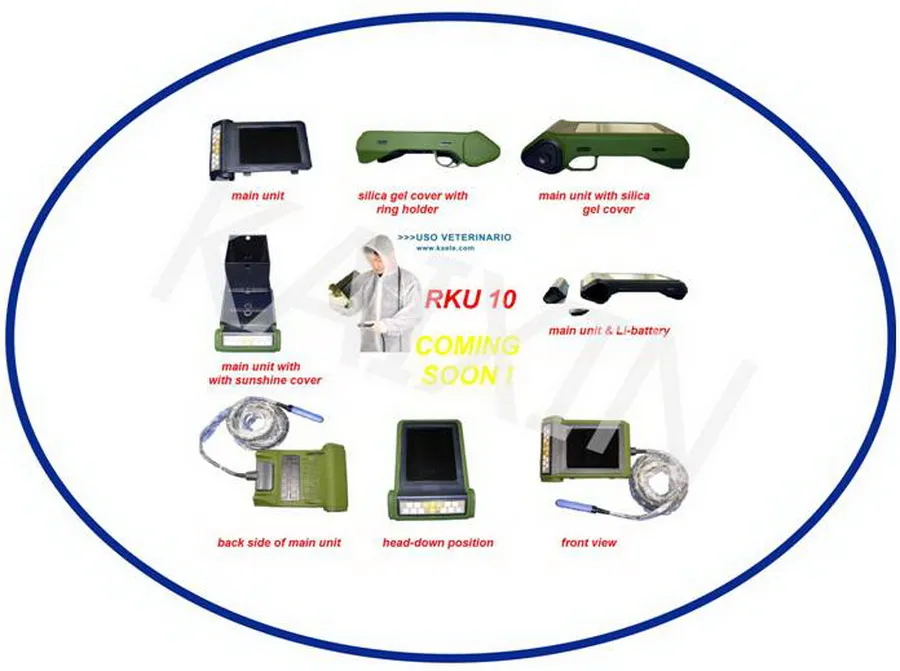

Standard Configuration

Main unit	1 pc
6.5MHz linear rectal probe	1 pc
Power adapter & Battery	1 pc each
Soft rubber coat & Sunshine cover	1 pc each
Black plastic suitcase	1 pc
Base Charger & Accessories	1 set

Optional Probes & Parts

4.0Mhz Convex rectal Probe	3.5MHz Convex probe
6.5MHz Micro-convex probe	7.5MHz Linear probe
3.5MHz Backfat probe	Thermal printer (P93W-S)
5200mAH Battery	Leather Case saddlebag

Frequently Asked Questions

Q1: Which animals are compatible with the RKU10 ultrasound?

The RKU10 is designed for a wide range of animals including bovine (cattle), equine (horses), ovine (sheep), swine (pigs), canine (dogs), feline (cats), goats, and camels.

Q2: How portable is the device for field work?

It is highly portable, weighing only 1.1kg. It features a "Ring Design" for easy handling and offers multiple carrying options like chest, back, or waist hanging, making it ideal for farm environments.

Q3: How long does the battery last on a single charge?

The internal high-capacity lithium battery provides over 6 hours of continuous operation, ensuring you can complete a full day of field diagnostics without frequent recharging.

Q4: Is the screen visible in bright sunlight?

Yes, the RKU10 uses a high-brightness, high-contrast LED display and comes with a professional sunshine cover. For extreme conditions, optional ultrasound goggles are also available.

Q5: Does the system include specific software for swine production?

Yes, it includes specialized functions to automatically calculate back-fat and lean meat percentages, which are essential for swine health and productivity monitoring.

Q6: Is the device protected against dust and water?

The RKU10 is encased in a soft rubber coat that provides splash-proof and dust-proof protection, ensuring durability in rugged veterinary clinical settings.
