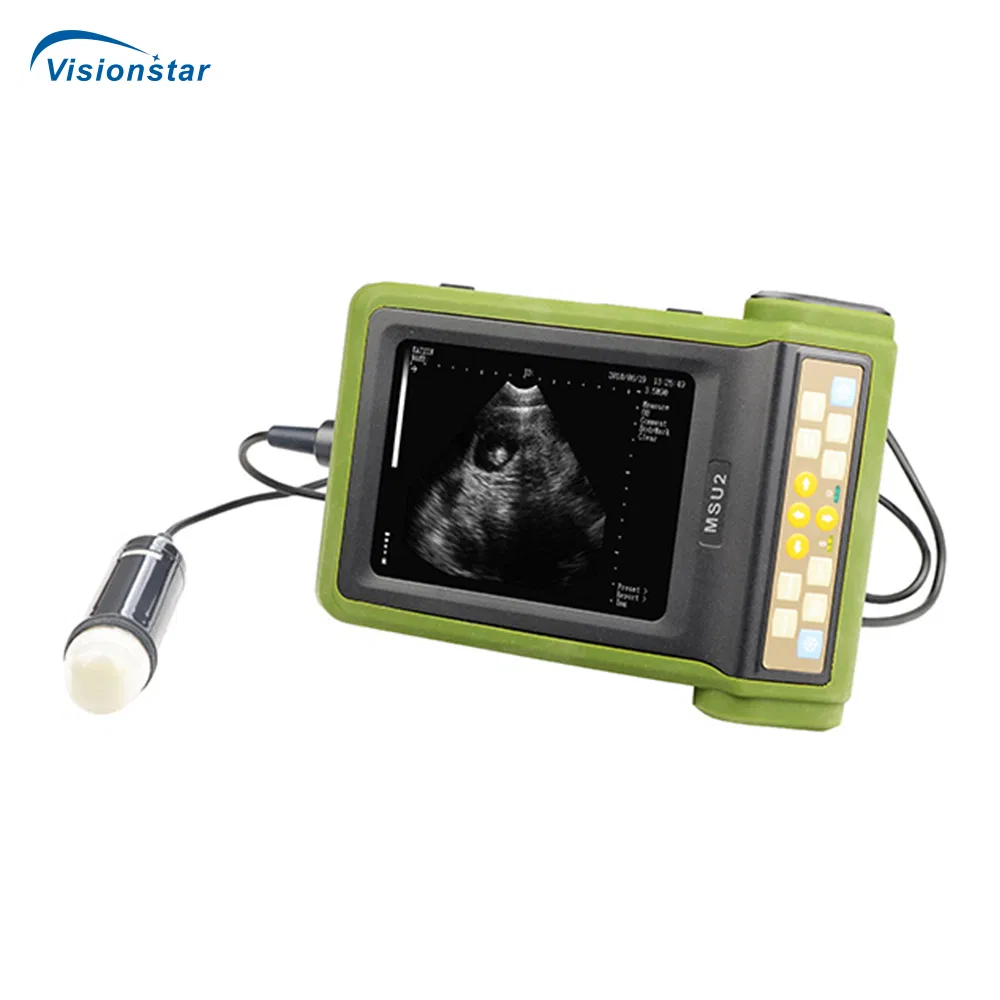

Msu-2 Full Digital Mechanical Sector Ultrasonic Diagnostic Instrument (Veterinary)

Customization: Available
Type: Veterinary Ultrasound Scanner
Applicable Animals:  Swine. Ovine, Canine etc.

Product Description

Basic Information
Model NO.
MSU-2
Pregnancy Diagnosis
Checks pregnancy in pigs 18 days post-mating
Fetal Diagnosis
Fetal heart rate measurement
Uterine Function
Diagnose Pyometra, mucometra, etc.

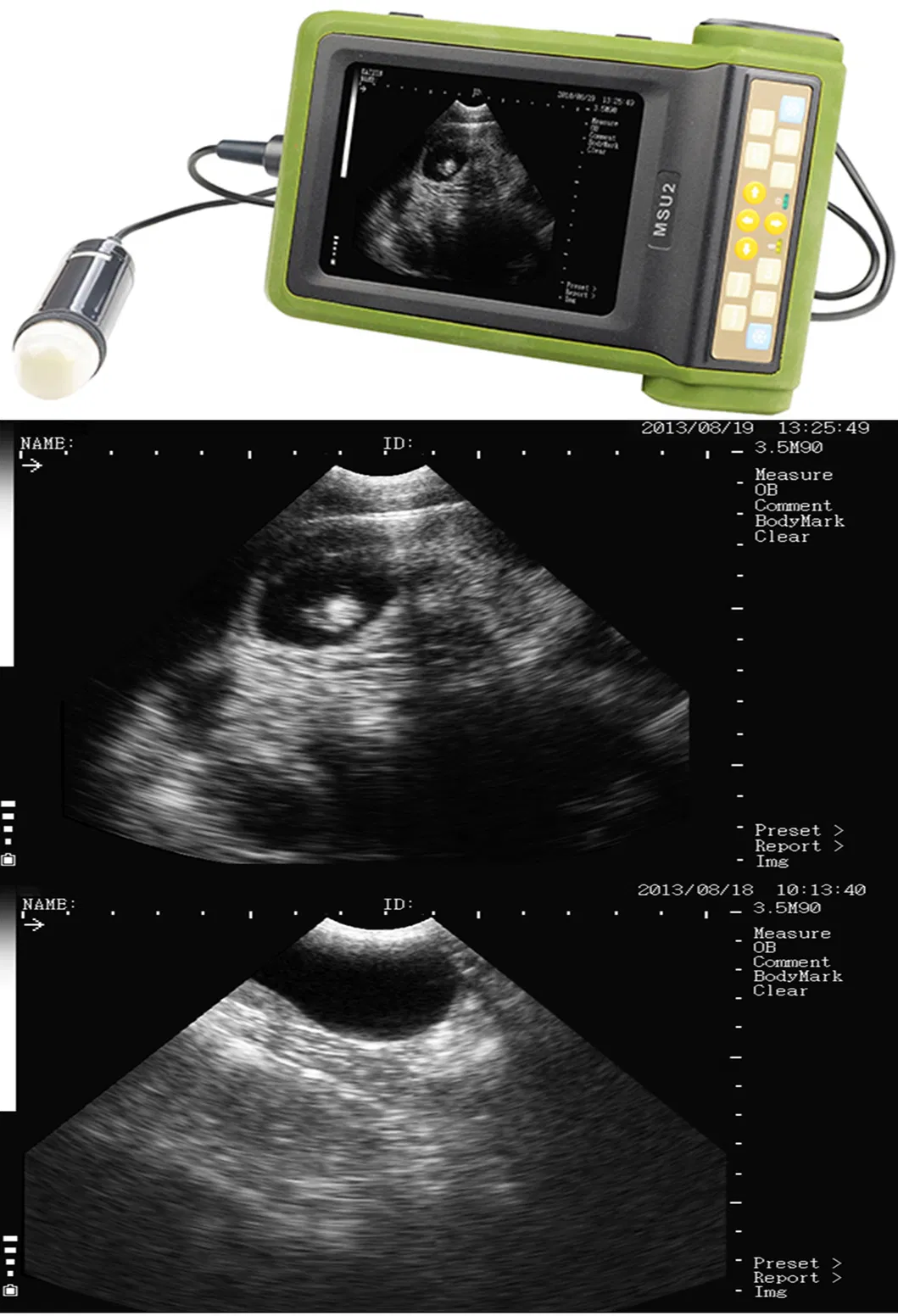

Display Mode
B, 2B, 4B, BM, M (5 Kinds)
Pseudo Color
8 Internal Colors (Incl. B/M)
OB Measurement
EDD and GA for Swine, Ovine, Canine
Transport Package
Standard Exporting Packaging
Product Features
⚖️ Smart & Lightweight

Net weight of only 1.1 KG, making it highly portable and easy to handle.

Ergonomic Design

Unique right/left handhold design, applicable for different user habits.

🔋 High Endurance

High-capacity lithium battery with low power consumption for over 6 hours of work.

☀️ Adaptable Display

Includes a three-gear adjustable sunshade for outdoor visibility.

Technical Specifications
Parameter Details
Applicable Animals Swine, Ovine, Canine, etc.
Pregnancy Diagnosis MSU2 can check pregnancy 18 days after mating (12 days earlier than traditional methods).
Fetus Diagnosis Measures fetal heart rate to judge health status.
Uterine Function Diagnose reproductive disturbance diseases like Pyometra and mucometra.
Economic Benefit Saves approximately 1000 USD in feed costs for every 100 sows by identifying non-pregnant pigs early.
Storage 100 frames permanent storage and local zooming.
Power Supply Equipped with high capacity lithium battery, driving the unit more than 6 hours.
Standard Configuration Main unit, 3.5MHz Mechanical sector probe, Lithium battery, Base Charger, Sunshine cover, Silicone protective cover, Plastic sealed box.
Frequently Asked Questions
How early can the MSU-2 detect pregnancy in pigs?
The MSU-2 can detect whether a pig is pregnant as early as 18 days after mating, which is about 12 days earlier than traditional methods.
Which animals is this ultrasound device suitable for?
It is specifically designed for veterinary use with swine (pigs), ovine (sheep), and canine (dogs).
How long does the battery last during field work?
The high-capacity lithium battery is designed for low power consumption and provides more than 6 hours of continuous operation.
Is the device easy to carry and operate?
Yes, it weighs only 1.1 KG and features a unique ergonomic design that supports both right and left-handed use, as well as hand-held or hanging configurations.
What imaging modes are available on the MSU-2?
The device supports 5 display modes: B, 2B, 4B, BM, and M, along with eight internal pseudo colors for better diagnostic visualization.
Can the device store diagnostic images?
Yes, the MSU-2 features 100 frames of permanent storage and supports flash card storage for managing diagnostic reports.
