Ultrasonic Diagnostic Instrument for Veterinary Use in Pet Clinics and Farms

Customization: Available
Certification: ISO13485
Type: Veterinary Ultrasound Scanner

Product Description

Basic Information
Model NO.
KX5600 VET
Instrument Type
Pet Clinic / Veterinary
Applications
Bovine, Equine, Swine, Goat, Canine
Net Weight
4.5kg
Medical Use
Animal Pregnancy & General Disease Check
Design
Portable Design
Origin
China
HS Code
90181210
Product Description & Technical Parameters

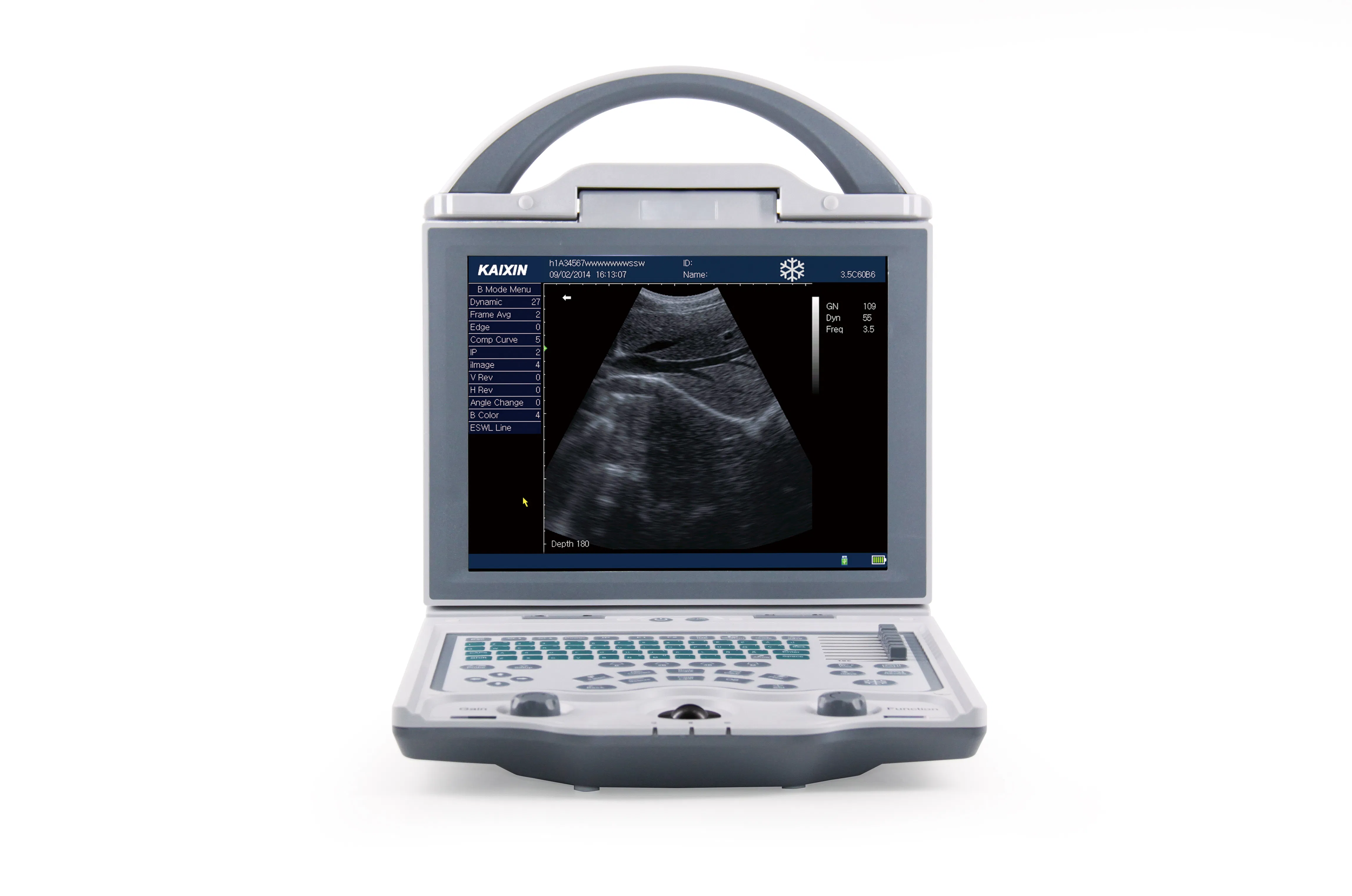

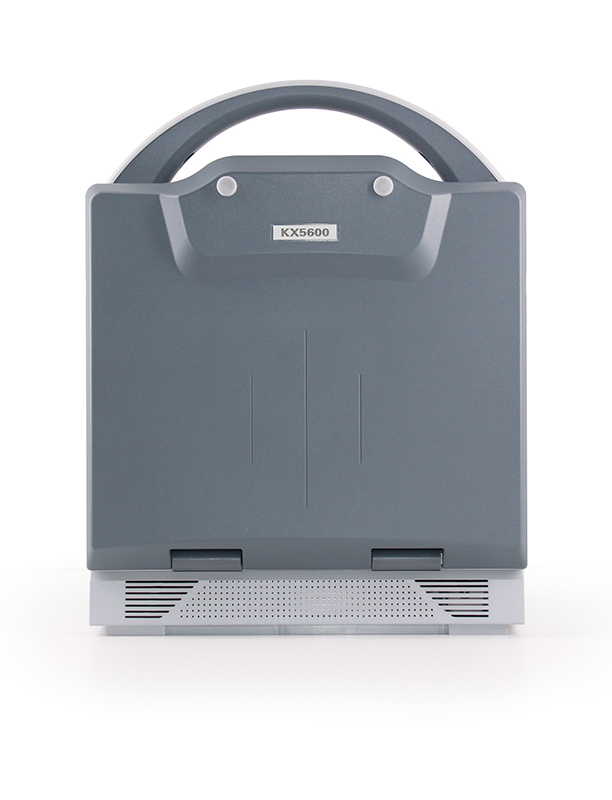

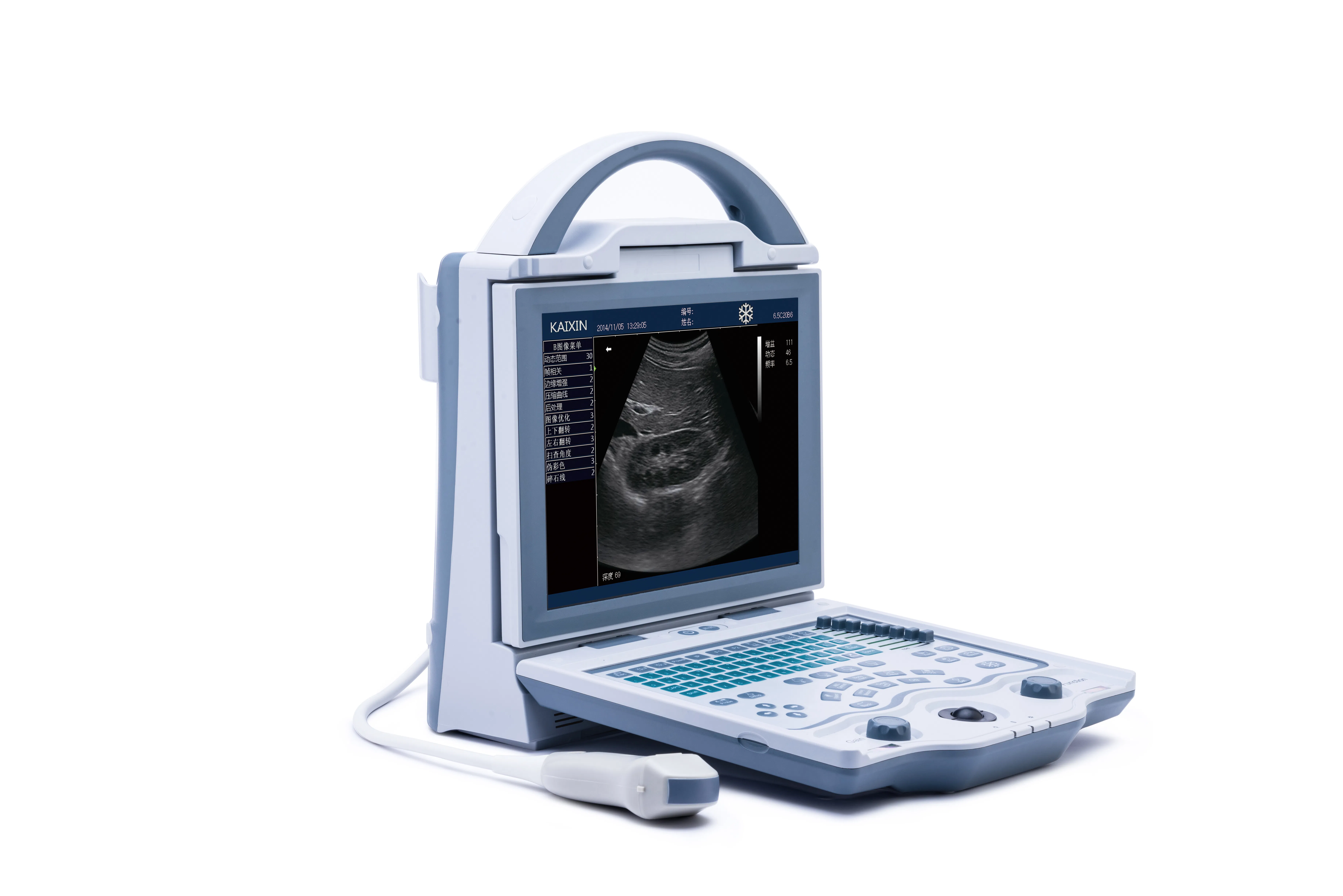

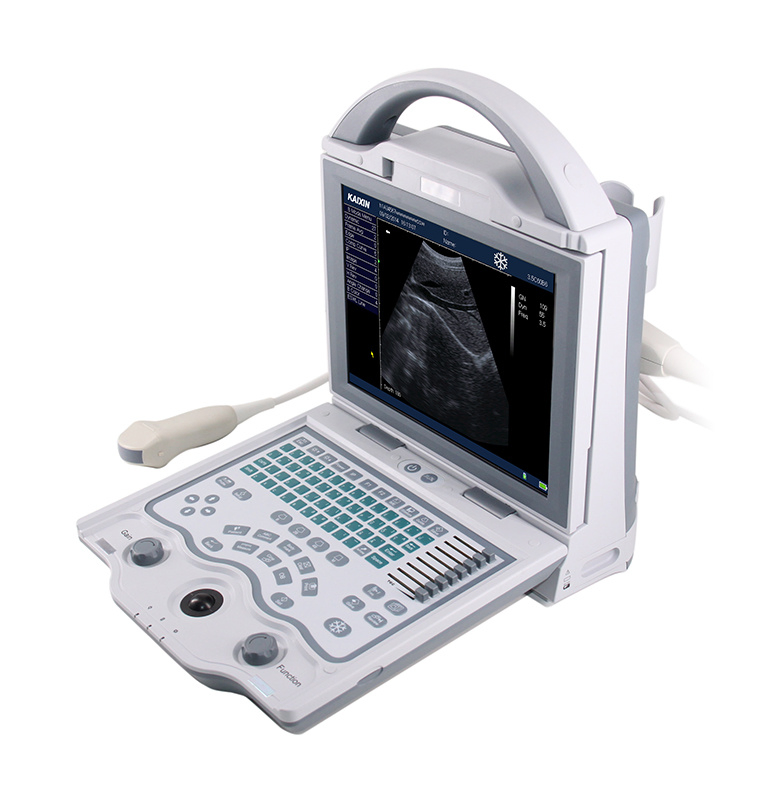

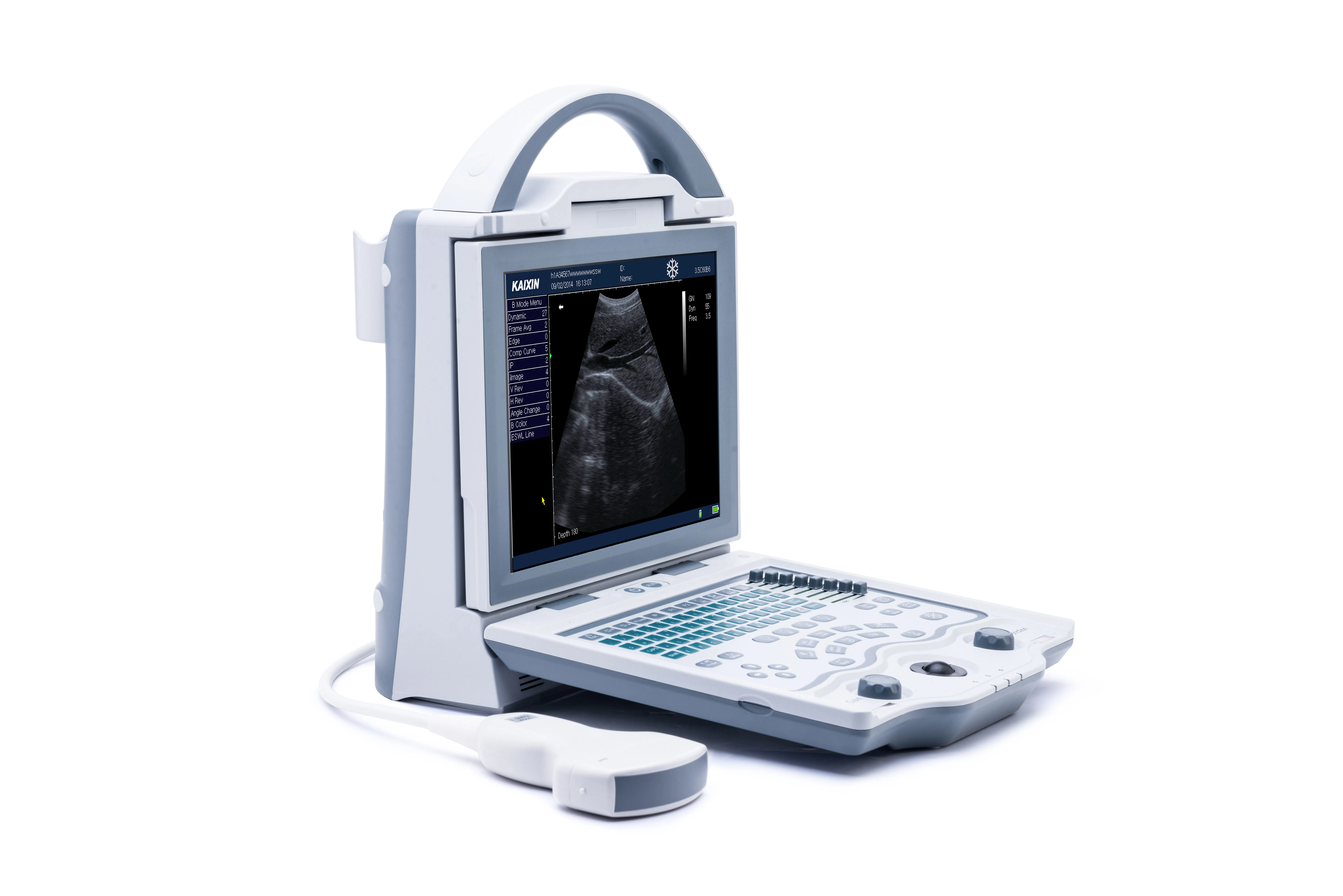

KX5600 Veterinary Ultrasound Scanner (Portable LED Model)

  • 10.4' High-resolution color LED backlight display with exceptional contrast.
  • Multi-language menu system: English, Spanish, French, Russian, and Portuguese.
  • Two probe sockets with auto-identification technology.
  • 27 types of body marks for various species including Bovine, Canine, Equine, Feline, Cardio, and Swine.
  • Versatile display modes: B, 2B, 4B, B/M, M.
  • Adjustable depth with 10 grades, reaching up to 236mm.
  • 8-step intelligent Time Gain Compensation (TGC).
  • 8 types of pseudo color options for enhanced diagnostic visualization.
  • 4GB internal hard disk storing approximately 5000 frames.
  • Cine loop with 256 frames and one-key store/review functionality.
  • Comprehensive OB measurement package for cattle, dogs, horses, cats, goats, camels, and sheep.
  • Unique one-key-light keyboard for operation in dark environments.
  • Main unit dimensions: 256×150×326mm (L×W×H).
Configuration Details
Standard Configuration
1Main Unit (1pc)
26.5MHz Linear Rectal Probe (1pc)
3Power Supply Adaptor (1pc)
4Reticle (1pc)
5Two Probe Sockets
Optional Configuration
16.5MHz micro-convex probe for small animals
23.5MHz linear probe for eye muscle
33.5MHz convex probe
47.5MHz high linear probe
5Li-battery: HYLB-1614 11.1V-4400mAh
6Trolley & Video printer

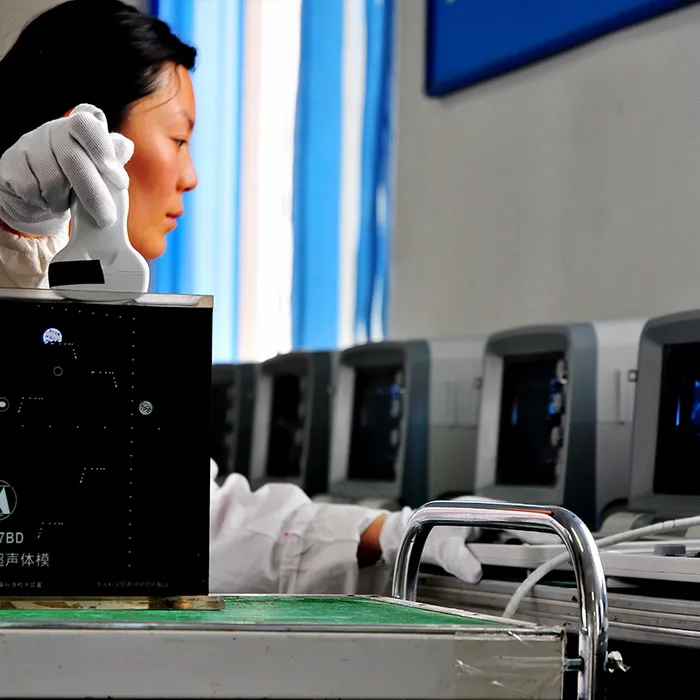

Product Visuals
Frequently Asked Questions
What animals can the KX5600 VET be used for?
The device is versatile and designed for bovine, equine, swine, goat, canine, feline, and even camels, with specialized body marks and OB measurement packages for each.
How portable is the device?
The main unit weighs only 4.5kg and features a compact portable design, making it ideal for both pet clinics and mobile farm visits.
What are the storage capabilities for images?
It comes with a 4GB internal hard disk that can permanently store approximately 5,000 frames, along with a 256-frame cine loop for detailed review.
Does the system support different languages?
Yes, the user-friendly menu system supports English, Spanish, French, Russian, and Portuguese.
Can I use this ultrasound in low-light conditions?
Absolutely. The KX5600 VET features a unique one-key-light keyboard function specifically designed for ease of use in dark examination rooms.
Can I connect external printers or workstations?
Yes, it features dual TV outputs (PAL/NTSC) for video printers and offers one-key transfer to network workstations for comprehensive reporting.
