Classification: Biochemical Apparatus
Type: Hematology Analyzer
Certification: CE, ISO13485
Send Inquiry

Product Description

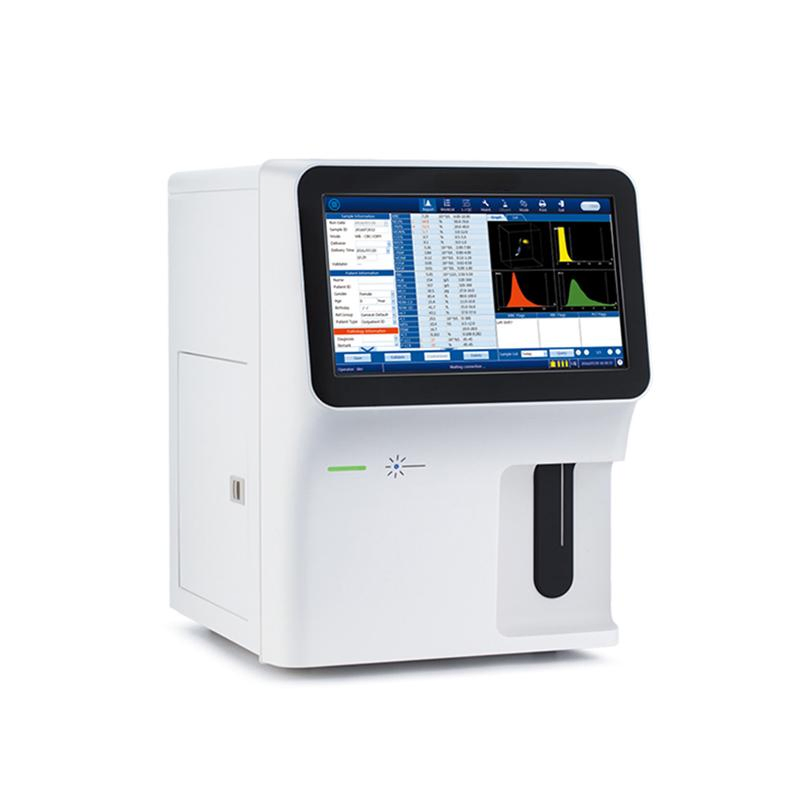

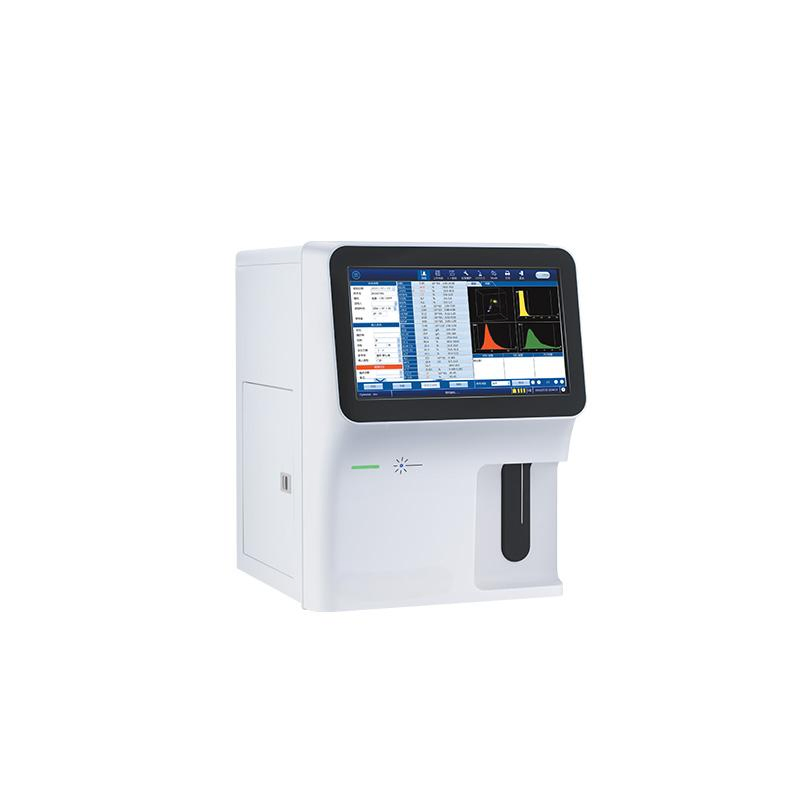

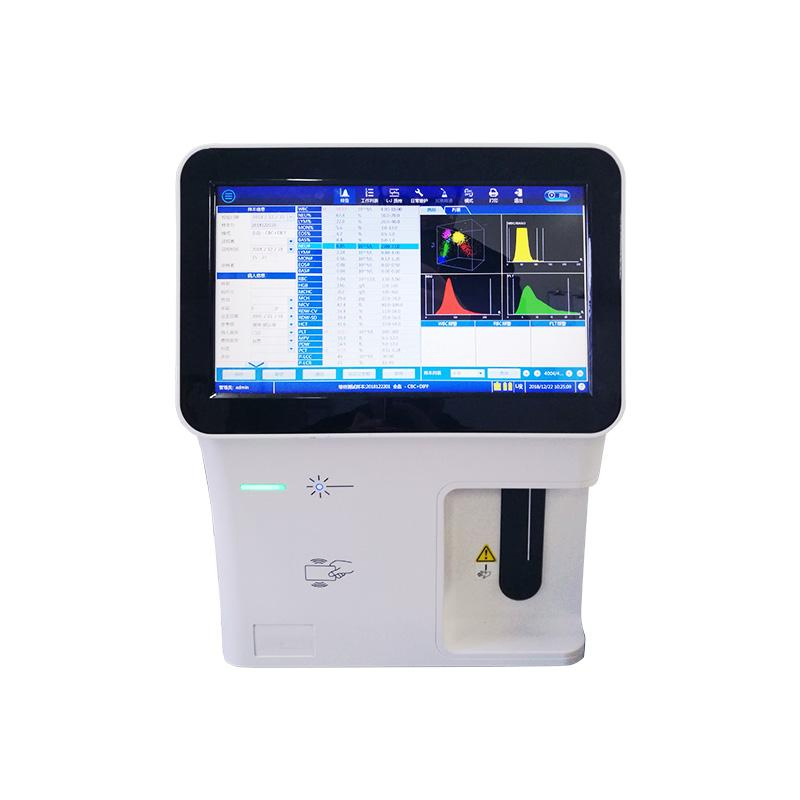

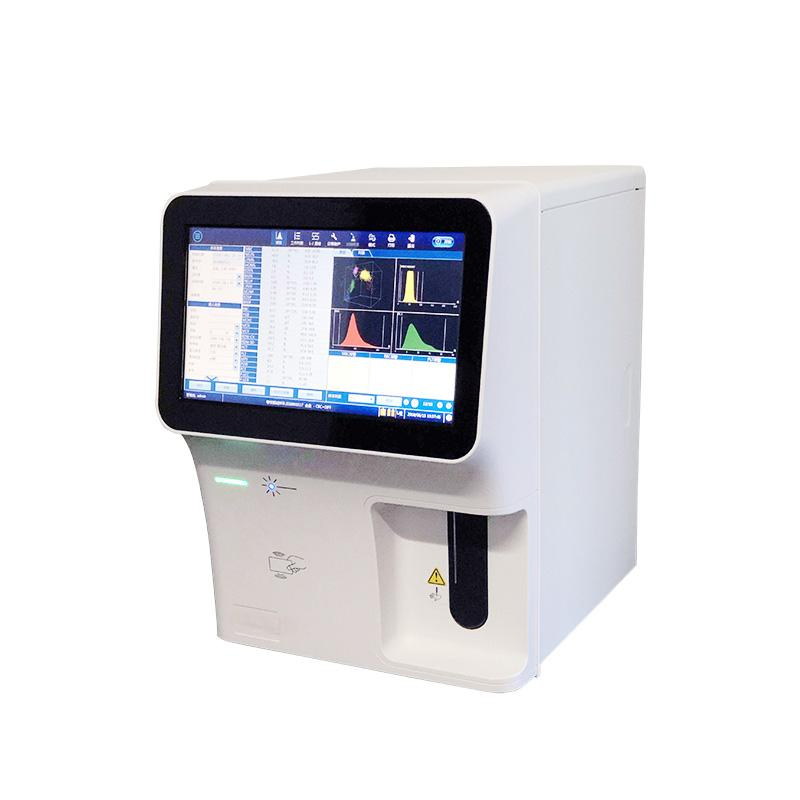

Veterinary Diagnostics Precise Efficient Blood Analysis 5 Diff Hematology Analyzer
Model: CCV-HB5

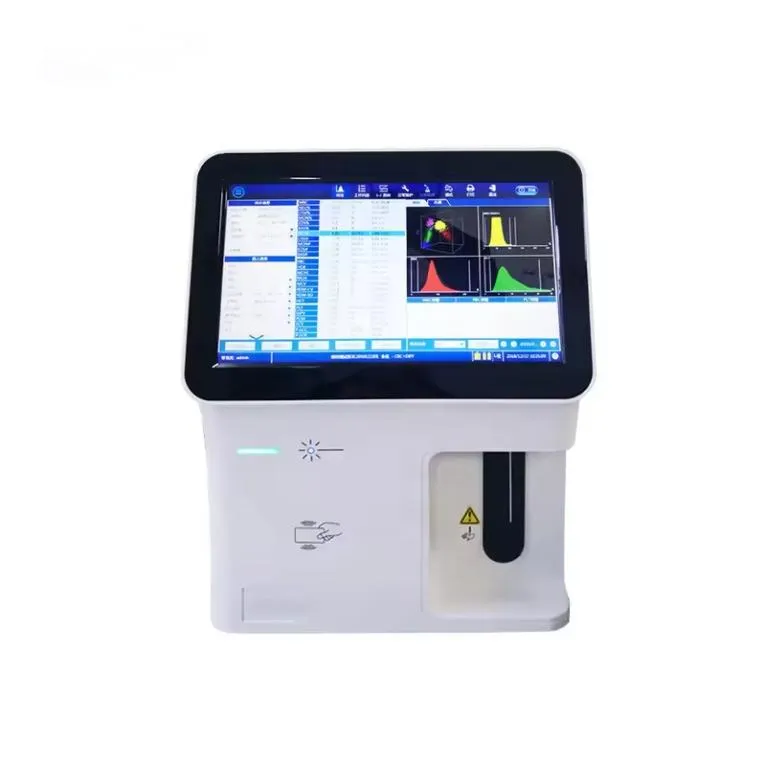

Veterinary Hematology Analyzer
📊 Basic Information
Model NO.
CCV-HB5
Warranty
1 Year
Transport Package
Standard Export Package
Origin
China
Production Capacity
500 units/Month
🌟 Key Features
⏱️
High Efficiency: Throughput of 60 Tests per Hour.
🖥️
User-Friendly Interface: Equipped with a 14-inch responsive touch screen.
🔬
Advanced Technology: Tri-angle laser scatter + flow cytometry + impedance method for RBC and PLT counting.
🧬
Precision Analysis: 3D holographic scattergram for accurate 5-part WBC differentiation.
💾
Large Storage: Capacity for 100,000 results (including histograms, scattergrams, and animal information).
📋 Technical Specifications
Parameter Detail
Sample ProfileDog, cat, horse, sheep, goat, camel, cow, and more species
Assay Items5 parts, 25 parameters, 3 histograms, 3D scattergram
PrincipleTri-angle laser scatter, Flow cytometry, 3D scattergram analysis, Impedance for RBC/PLT, Cyanide-free HGB test
Test ModeCBC mode, CBC+DIFF mode
Sample VolumeCBC+DIFF mode: ≤20ul; CBC mode: ≤10ul
Performance (CV)WBC ≤2.0%, RBC ≤1.5%, HGB ≤1.5%, PLT ≤4.0%
Interface4 USB ports, 1 LAN port, Bi-direction LIS, HL7 protocol, Internal RFID reader
Power SupplyAC100~240V±10% 50/60Hz; 400VA
Physical SpecsSize: 575*490*690mm; Gross Weight: 46kg
📸 Product Gallery

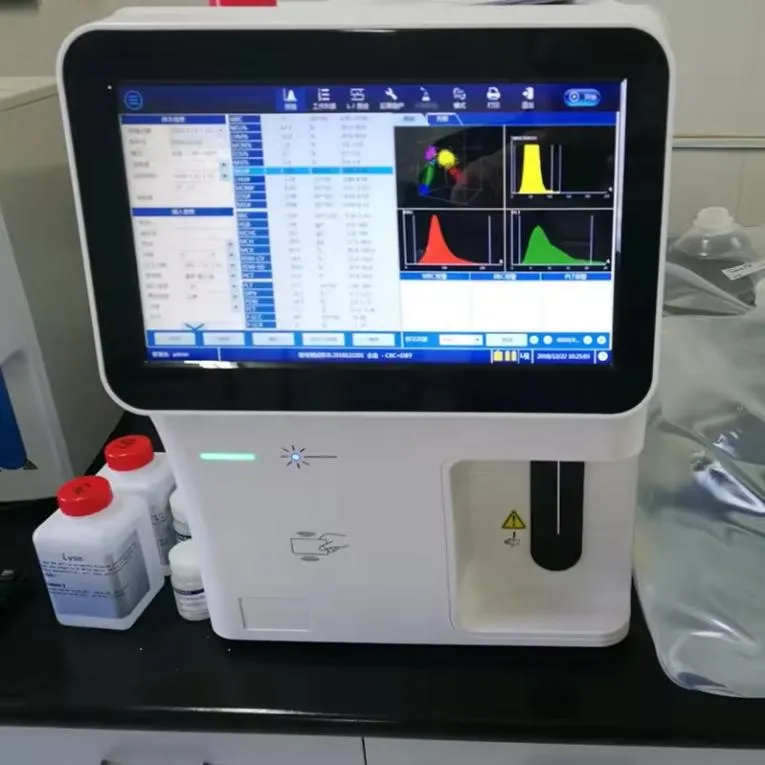

Analyzer View 1

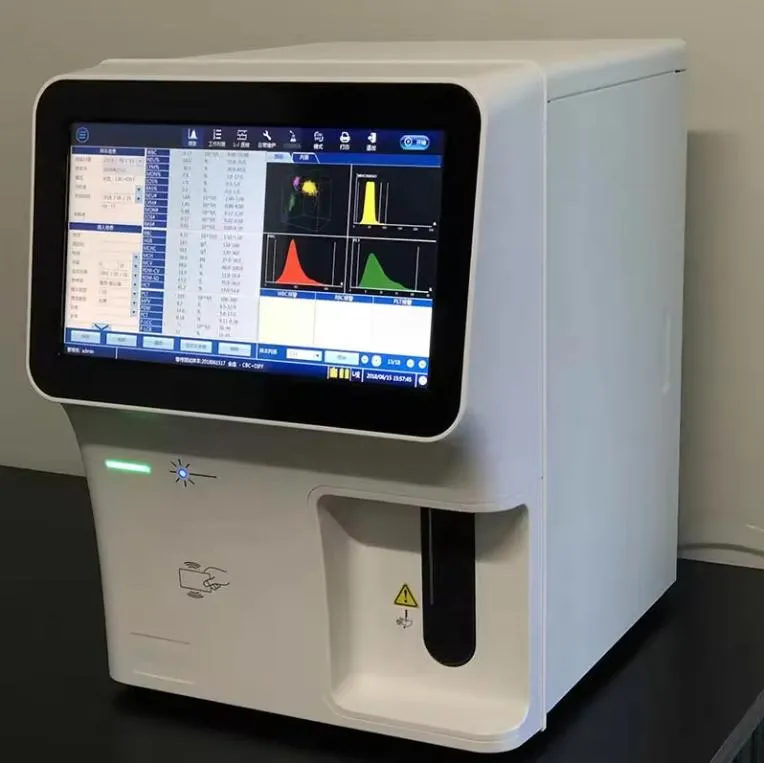

Analyzer View 2
🏥 Comprehensive Hospital Medical Equipment
X-Ray Solutions:

Machines, Processors, Films, Cassettes, Lead Clothing

Ultrasound:

B/W 2D, 2D/3D/4D Color Ultrasound

Laboratory:

Chemistry & Hematology Analyzers, Centrifuges, Elisa Readers

Operating Room:

Anesthesia Machines, Ventilators, Operating Lamps, Tables

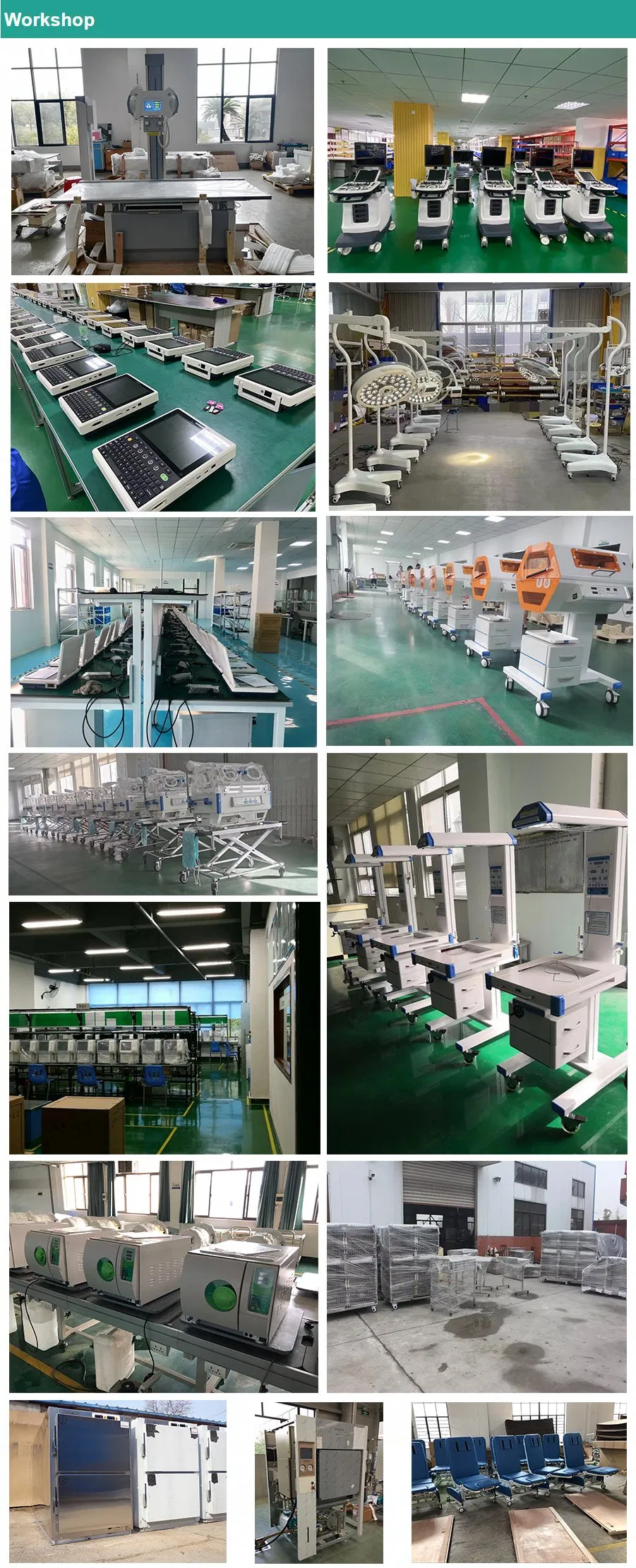

Medical Equipment Range Detailed Catalog Equipment Display
❓ Frequently Asked Questions
How many tests can the analyzer process per hour?
The CCV-HB5 has a high throughput of 60 tests per hour, making it efficient for busy veterinary clinics.
Which animal species are supported by this device?
It supports a wide range of animals including dogs, cats, horses, sheep, goats, camels, and cows, with more species profiles being added.
What is the required sample volume for a test?
For CBC+DIFF mode, the required volume is ≤20ul, while for standard CBC mode, it only requires ≤10ul.
Does the system provide a visual breakdown of blood cells?
Yes, it uses tri-angle laser scatter and flow cytometry to provide a 3D holographic scattergram for accurate 5-part differentiation of WBCs.
What are the data storage capabilities?
The device can store up to 100,000 results, which includes detailed histograms, scattergrams, and specific animal patient information.
Is the screen easy to operate?
Absolutely. It features a large 14-inch touch screen designed for intuitive navigation and clear display of diagnostic data.
