Veterinary Instrument for Cow Horse Goat Swine Palm Diagnostic Instrument

1 / 5

Veterinary Instrument for Cow Horse Goat Swine Palm Diagnostic Instrument

Customization:	Available
Certification:	ISO13485
Veterinary Instrument:	Use for Cow, Horse, Goat, Swine

Send Inquiry

Product Description

Basic Information

Model NO.

RKU10

Palm Ultrasound

Ring Design, Smart and Light

Clinic

For Animal

Medical Use

Pregnancy Check, Urine Disease

Scanner Type

With Internal Li-Battery

Package

Standard Export Package

Specification

N.W: 1.1KG; G.W: 6.8KG; Vol: 0.04CBM

HS Code

9018121000

Production Capacity

5000 Units

Product Overview

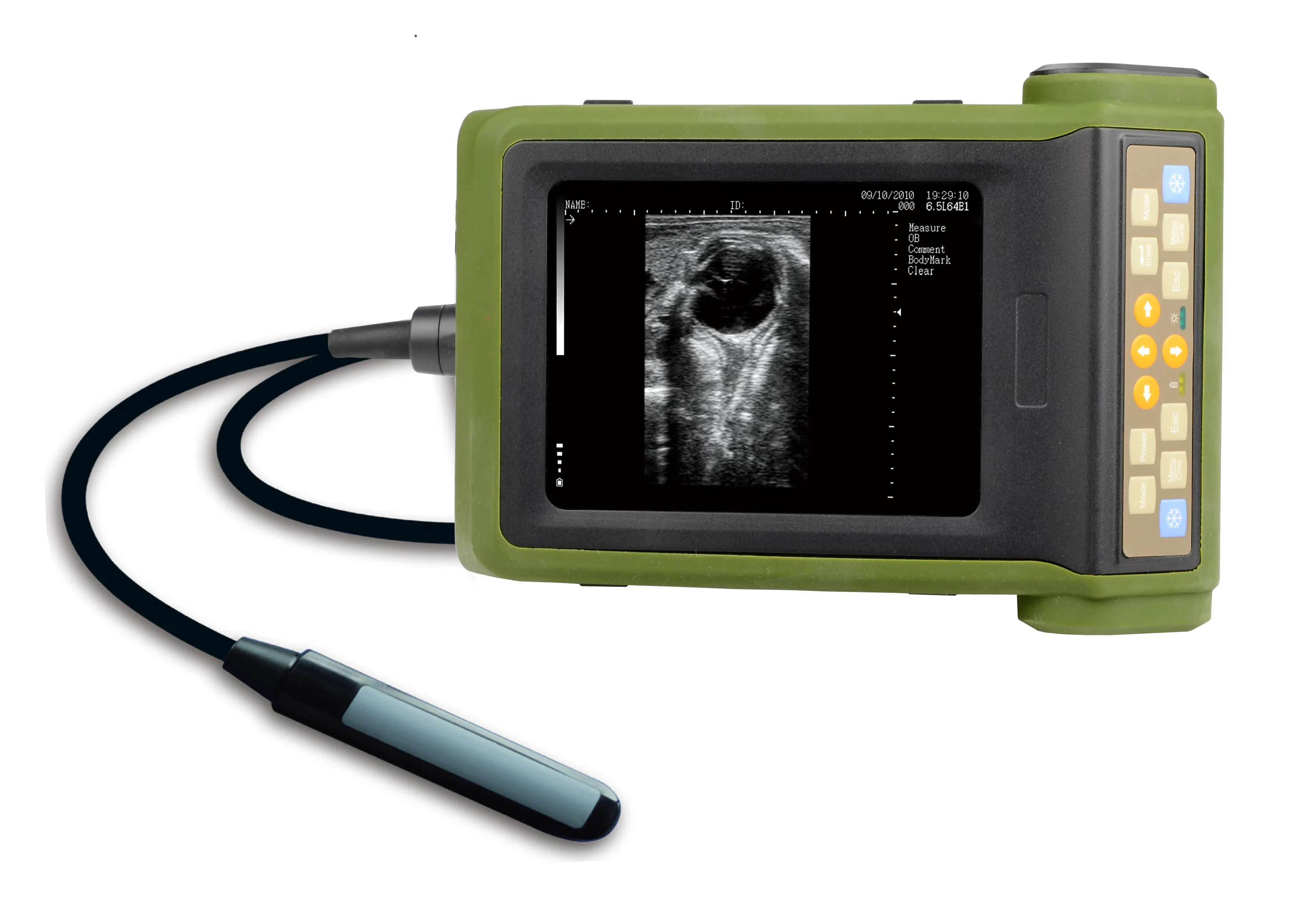

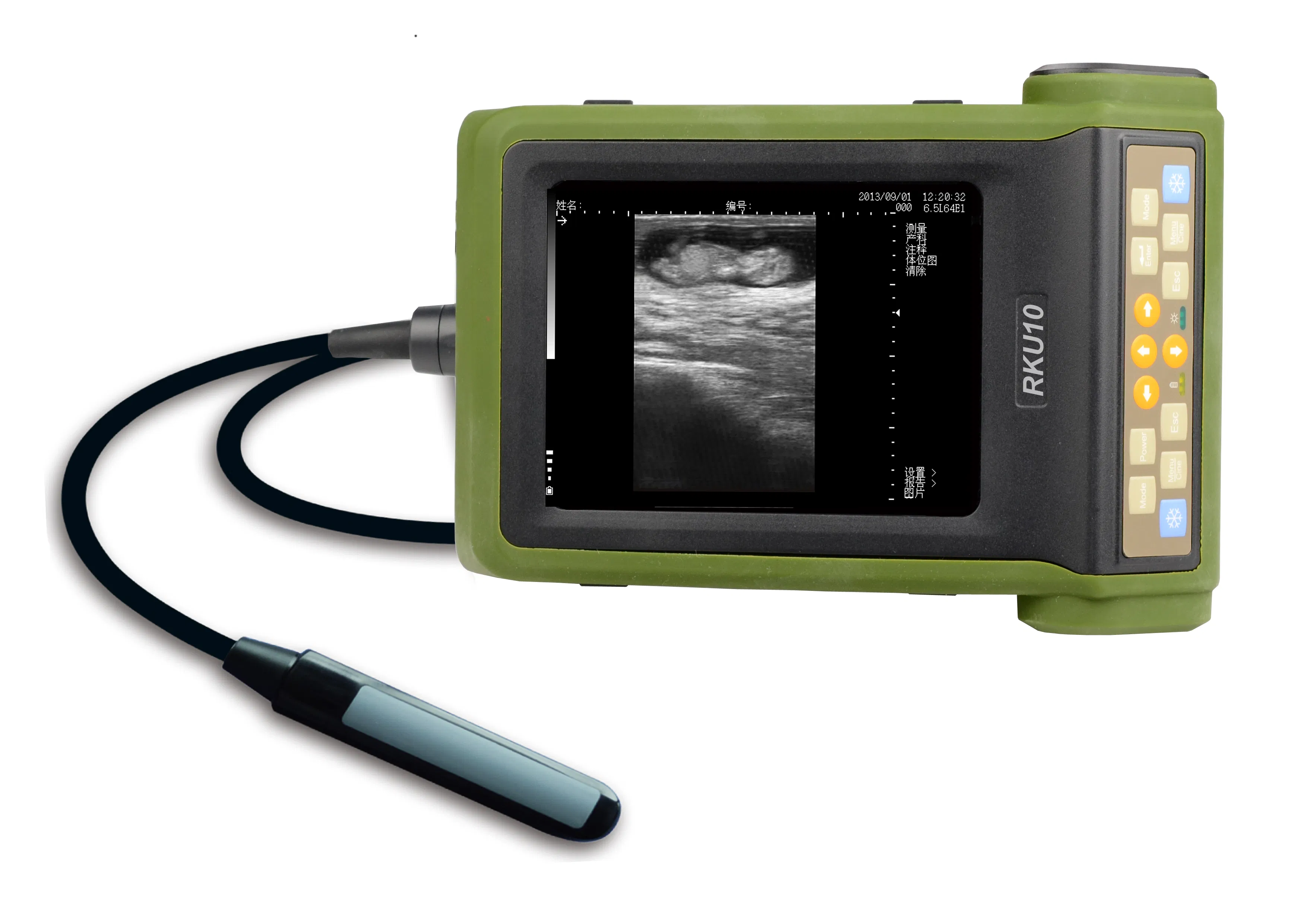

RKU 10 Veterinary Ultrasound Scanner (RING KING ULTRASOUND)

Application: RKU 10 is adept at delivering precise and comprehensive ultrasound diagnostics, including abdomen and pregnancy evaluations. Specially designed for large animals such as bovines, equines, ovines, canines, felines, goats, swines, and llamas.

★ Smart and lightweight, weighing only 1.1kg.

★ Over 6 hours of uninterrupted operation with high-capacity lithium battery.

★ Sunshine cover included for outdoor use under strong light.

★ Ergonomically designed for ambidextrous use to reduce fatigue.

★ Multiple usage: hand-held, chest hanging, back/waist hanging.

★ Optional professional goggles for convenient outdoor diagnostics.

★ Splash-proof and dust-proof soft rubber coat protection.

★ 256-frame cine loop and 100-frame permanent image storage.

Technical Specifications

Parameter	Details
Monitor	5.7" high resolution LED display, high brightness/contrast, wide viewing angle
Display Mode	B, 2B, 4B, B/M, M
Gain	0 ~ 127dB
Contrast	27 ~ 90dB
Magnification	0.8 to 3.0 (multiple steps)
Storage	100 frames permanent storage
Cine Loop	256 frames
Measurements	Distance, circumference, area, volume, heart rate, cycle
OB Measurement	Cattle, dogs, horses, pig, cats, goats, camels, sheep
Swine Specific	Back-fat and lean automatic calculation function
Grid Measurement	6 different types (point grid, line grid, point rulers)

Configurations

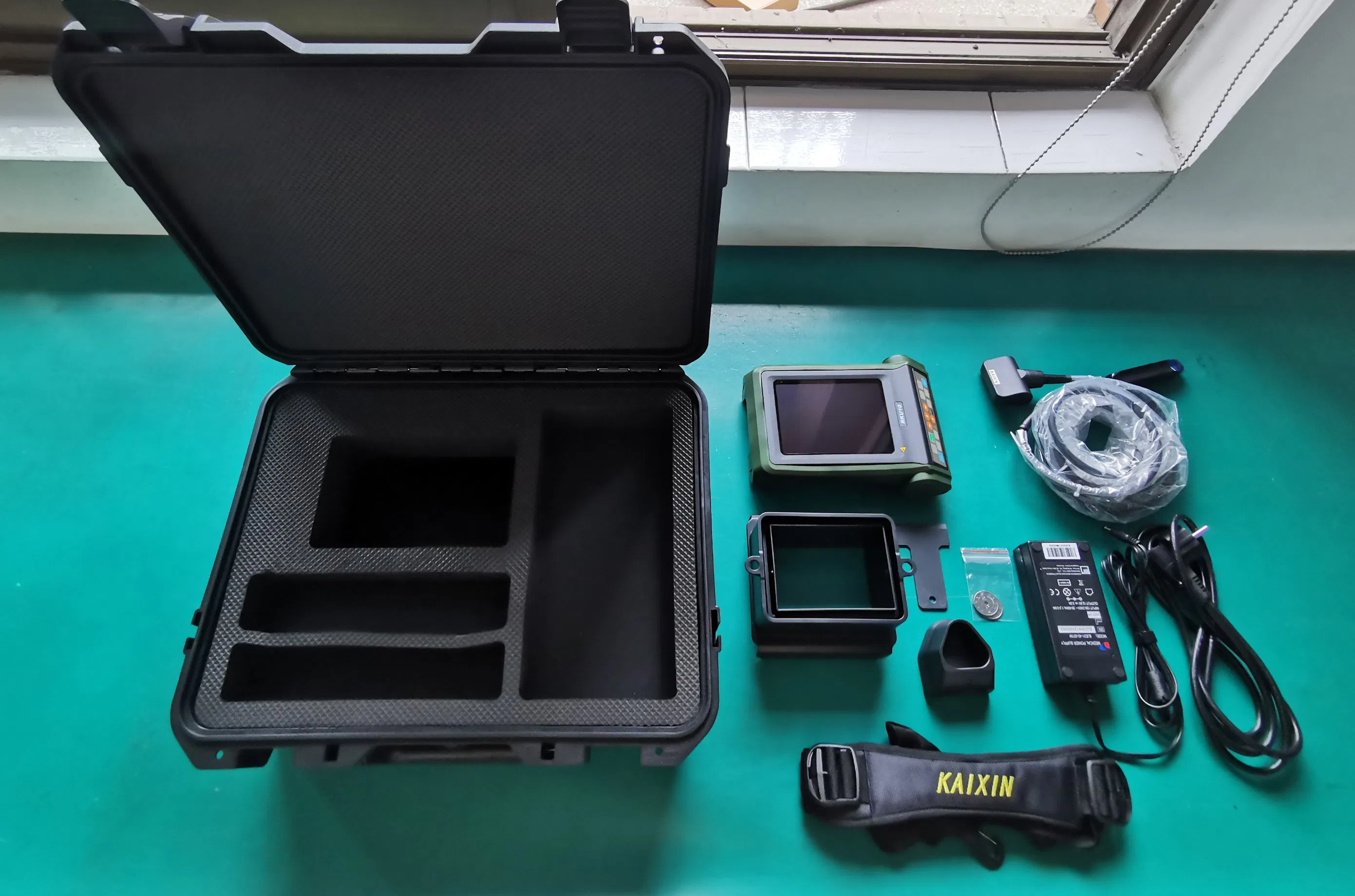

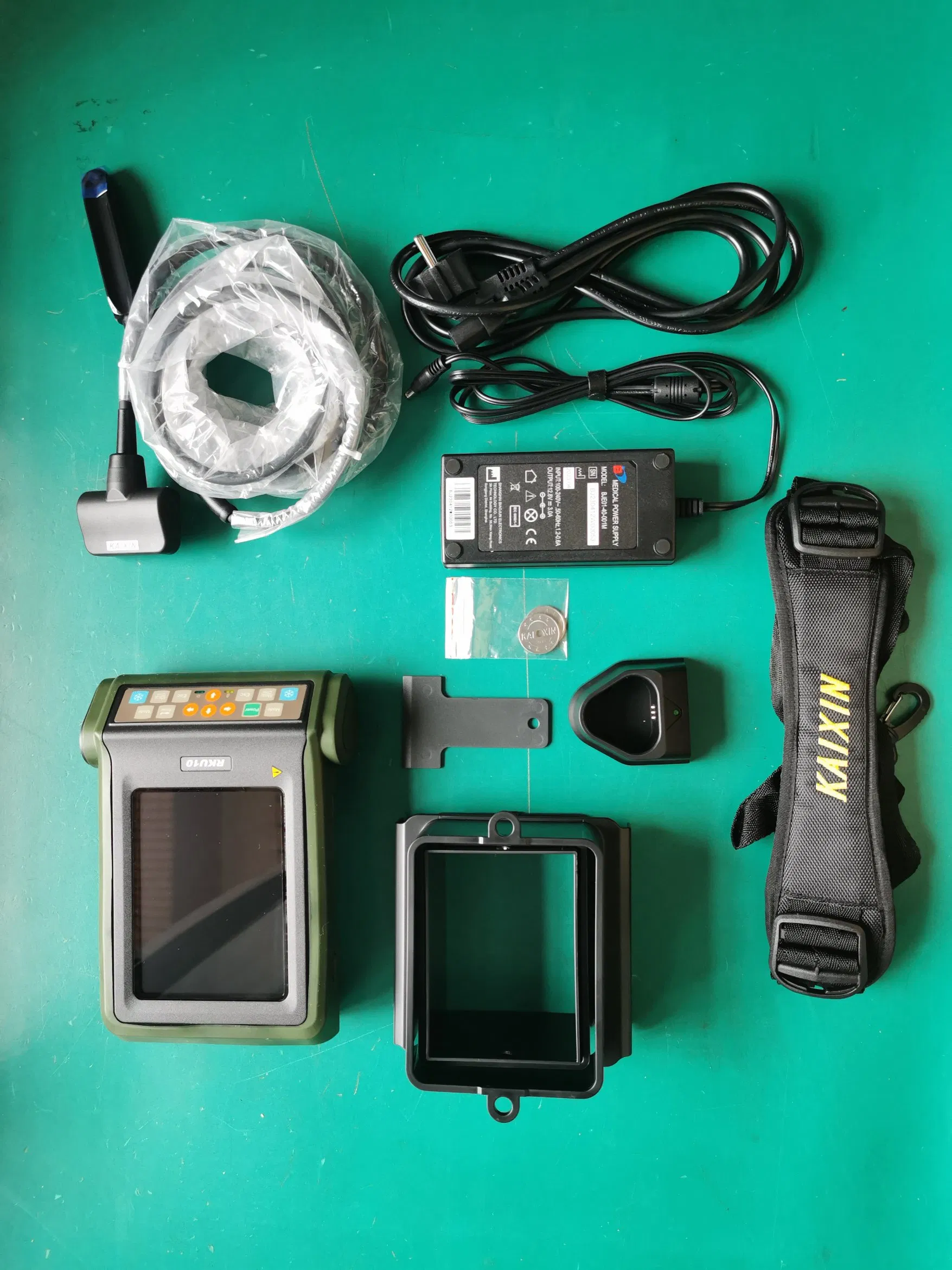

Standard Configuration:

1. Main unit (1 pc)	2. 6.5MHz linear rectal probe (1 pc)
3. Power adapter (1 pc)	4. Internal lithium battery (1 pc)
5. Soft rubber coat (1 pc)	6. Sunshine cover (adjustable)
7. Black plastic suitcase (1 pc)	8. Base Charger, belt, probe socket spatula

Optional Configuration:

4.0Mhz convex rectal Probe	6.5MHz micro-convex probe
3.5MHz convex probe	7.5MHz linear probe
3.5MHz Backfat probe	Thermal printer (P93W-S)
Lithium Battery (5200mAH)	Leather Case saddlebag

Frequently Asked Questions

What types of animals is the RKU 10 suitable for?

It is specially designed for large animals including bovines (cattle), equines (horses), ovines (sheep), goats, swines (pigs), llamas, as well as canines and felines.

How long does the battery last in the field?

The RKU 10 is equipped with a high-capacity internal lithium battery that provides over 6 hours of continuous working time.

Is the screen visible in bright outdoor conditions?

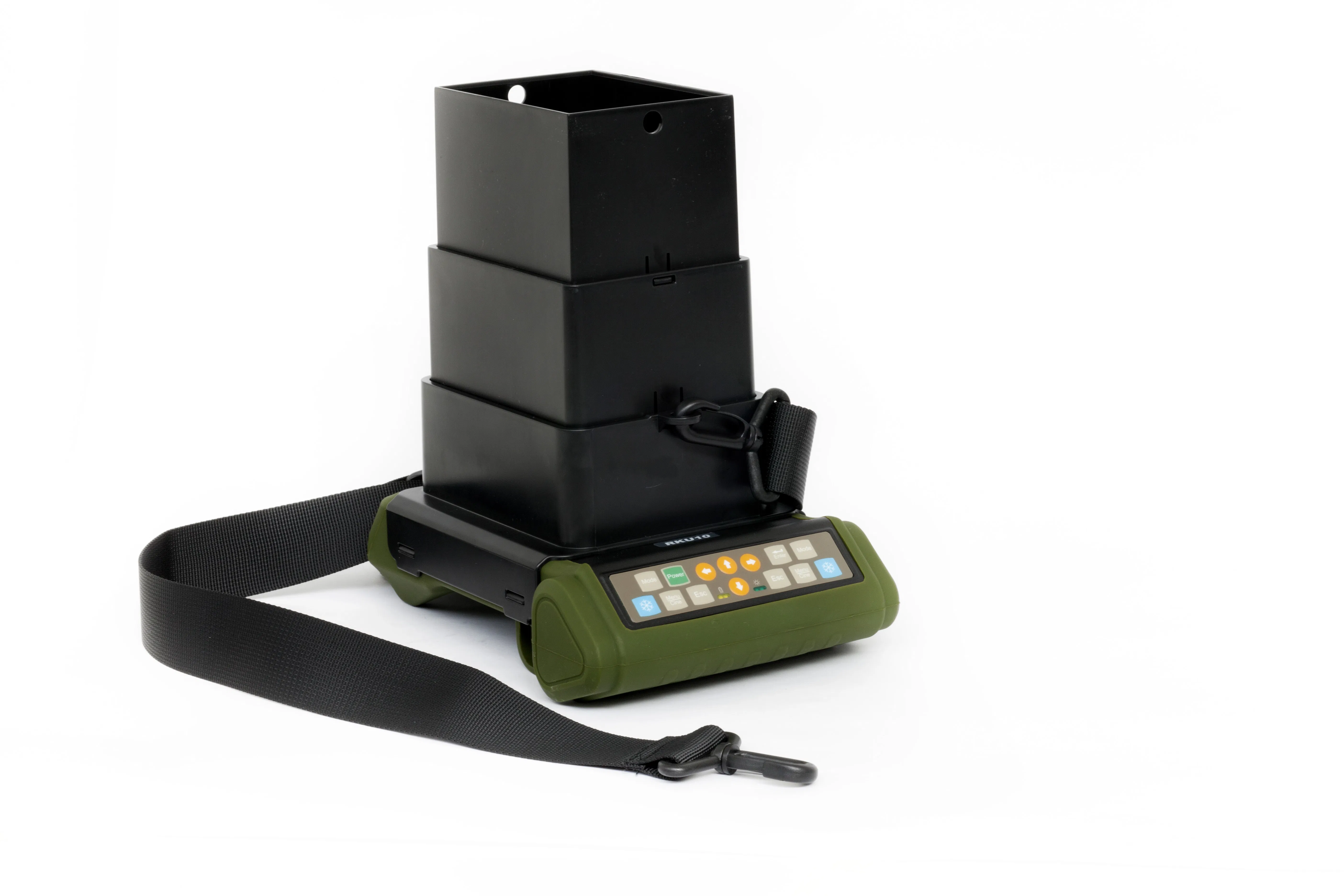

Yes, it features a 5.7" high-resolution LED display with high brightness and contrast. It also comes standard with a three-section adjustable sunshine cover for outdoor use.

Can this device calculate back-fat for pigs?

Absolutely. The RKU 10 includes an automatic calculation function specifically for swine back-fat and lean percentage.

What is the weight and portability of the device?

The device is extremely portable, weighing only 1.1kg. It supports various carrying methods such as hand-held, chest hanging, or waist hanging.

Is the RKU 10 durable for farm environments?

Yes, it features a soft rubber coat that makes the unit splash-proof and dust-proof, protecting it in rigorous veterinary environments.
