Veterinary Instrument for Cow Horse Goat Swine Palm Ultrasonic Diagnostic Tool

Customization:	Available
Certification:	ISO13485
Veterinary Instrument:	Use for Cow, Horse, Goat, Swine

Send Inquiry

Product Description

Basic Specifications

Model NO.

RKU10

Design

Ring Design, Smart and Light

Clinical Use

For Animal Diagnostic

Main Application

Pregnancy Check, Urine Disease

Power Source

Internal Li-Battery

Package

Standard Export Package

Weight

N. W: 1.1KG; G. W: 6.8KG

HS Code

9018121000

Product Description

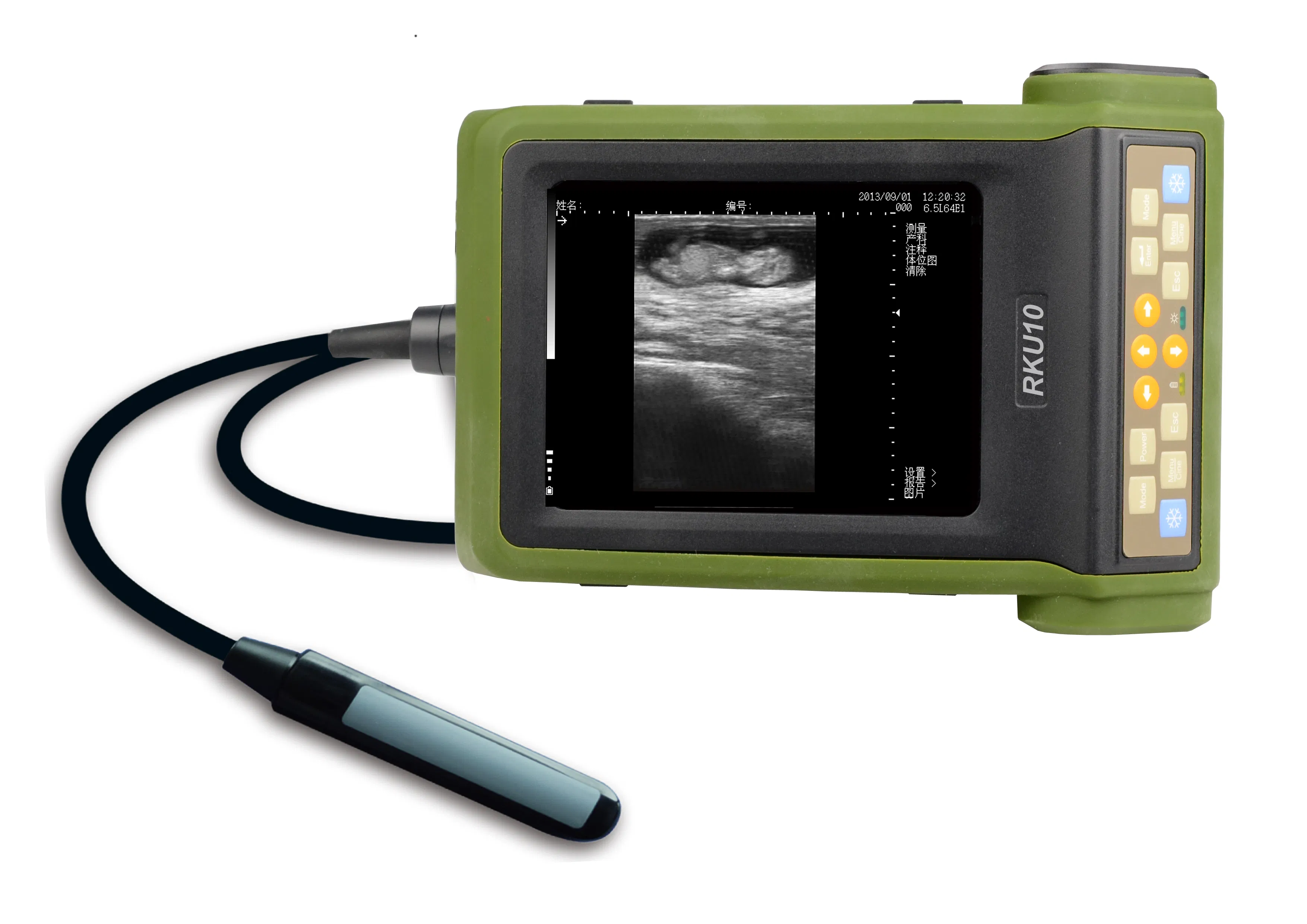

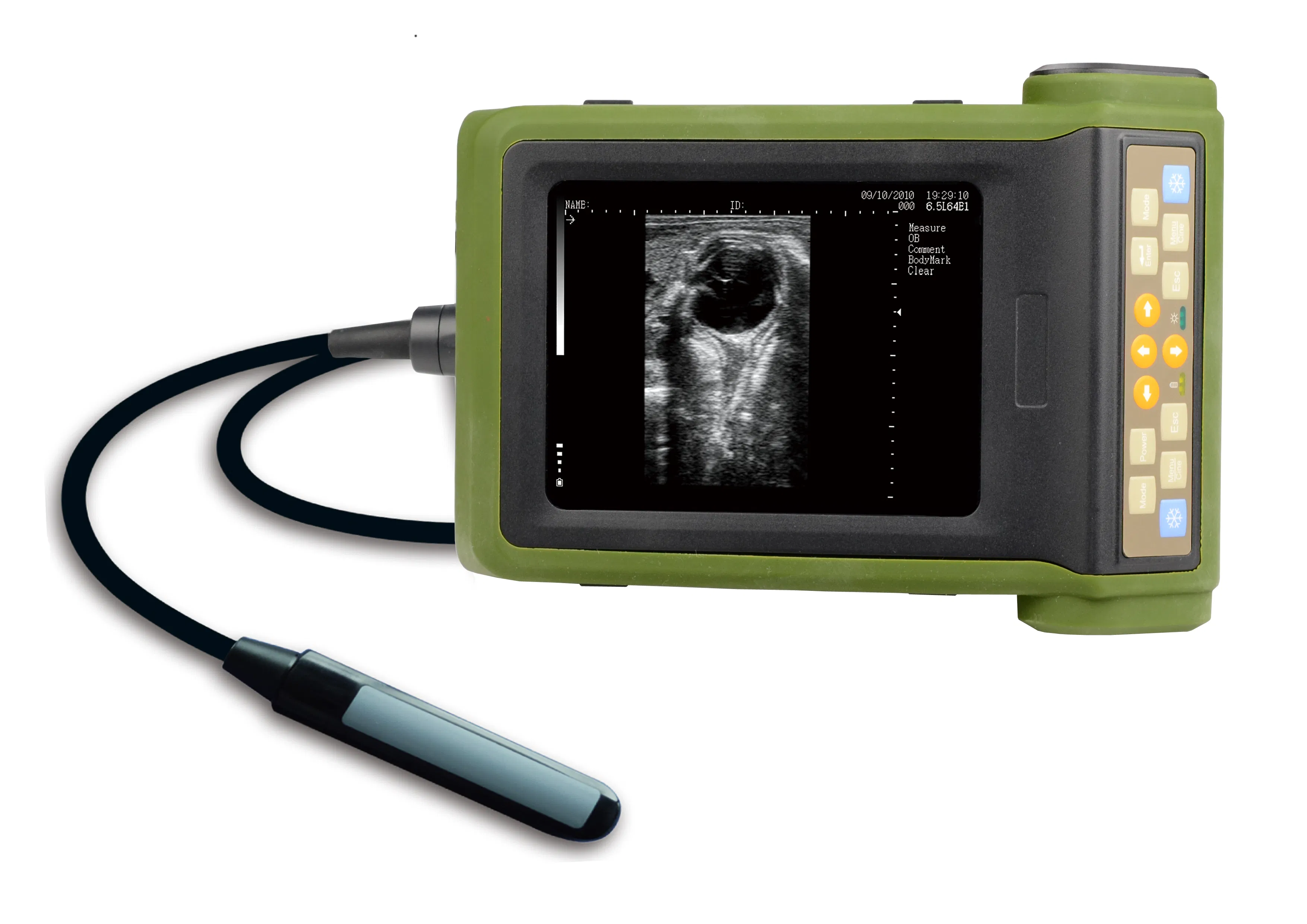

Introducing the RKU 10 Veterinary Ultrasound Scanner. Experience the precision of the RING KING ULTRASOUND. The RKU 10 is extensively employed for routine ultrasound diagnoses, including abdominal scans and pregnancy detection.

Primary Market: Ideal for pregnancy checks and follicular aspiration in large animals such as bovine, equine, ovine, canine, feline, goat, swine, and llama.

Key Features

⚖️

Lightweight Design
Weighs just 1.1kg. Smart and lightweight design for effortless handling.

🔋

Long Endurance
High-capacity lithium battery providing over 6 hours of continuous operation.

☀️

Outdoor Ready

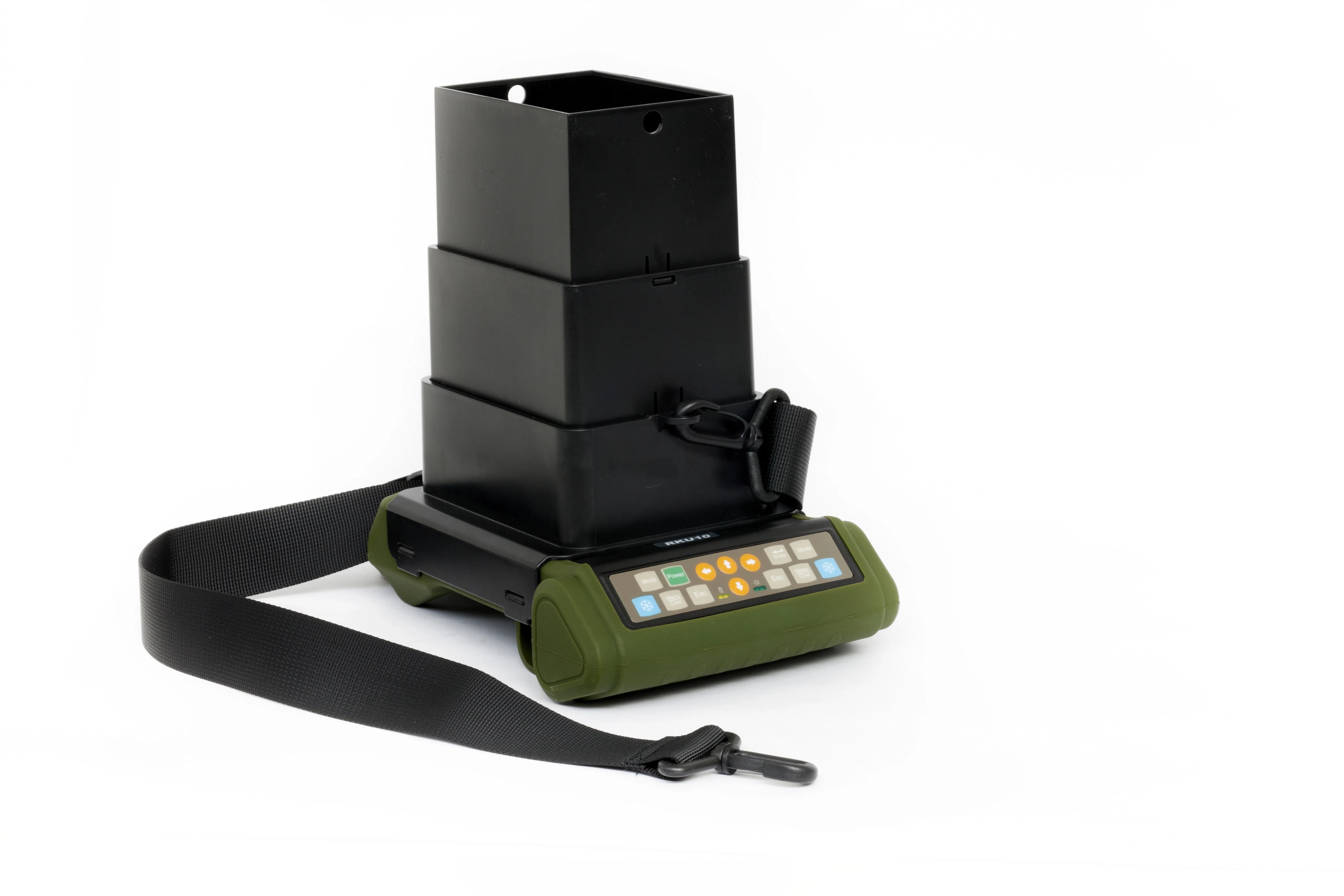

Includes a sunshine cover and optional goggles, perfect for bright outdoor conditions.

🛡️

Durable Protection
Features a soft rubber coat, offering splash-proof and dust-proof protection.

Designed for both left and right-hand use, reducing operator fatigue.
Versatile usage: hand-held, chest-hanging, back-hanging, and waist-hanging.
Advanced functionality: 2 filter options, 7 compression curves, 100 frames permanent storage.
256 frames cine loop and automatic calculation of swine back fat and lean percentage.

Veterinary Instrument Palm Ultrasonic Diagnostic Tool

Technical Specifications

Parameter	Details
Monitor	5.7" high resolution LED display; High brightness/contrast, wide viewing angle
Display mode	B, 2B, 4B, B/M, M
Gain / Contrast	Gain: 0~127dB; Contrast: 27~90dB
Magnification	0.8, 1.0, 1.2, 1.5, 1.6, 2.0, 2.4, 3.0
Storage	100 frames permanent storage; 256 frames Cine loop
Measurement	Distance, circumference, area, volume, heart rate, cycle, OB measurement
OB Animals	Cattle, dogs, horses, pig, cats, goats, camels and sheep
Special Function	Back-fat and lean automatic calculation for Swine
Grid measurement	6 different modes (Point grid, line grid, point rulers)

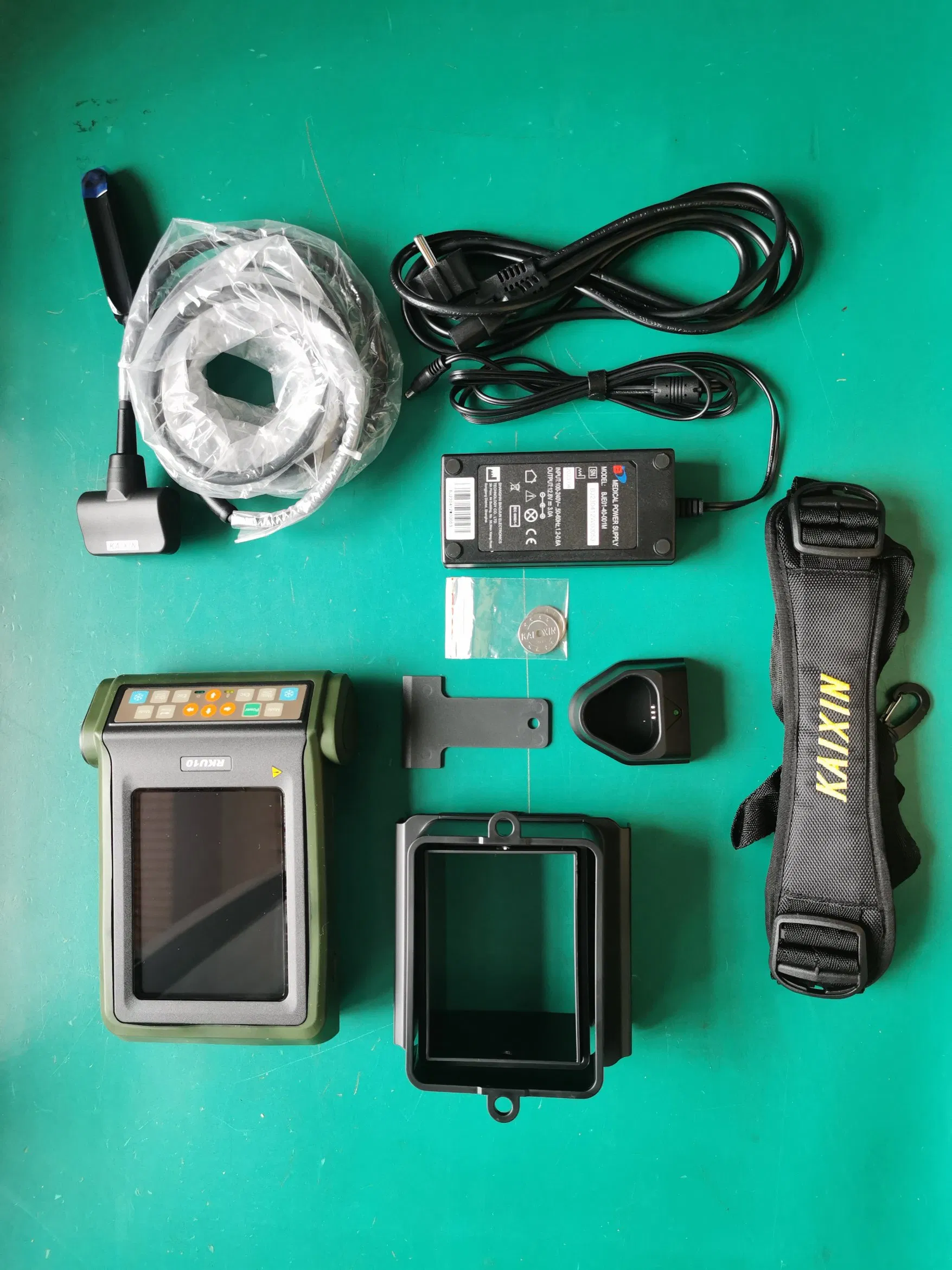

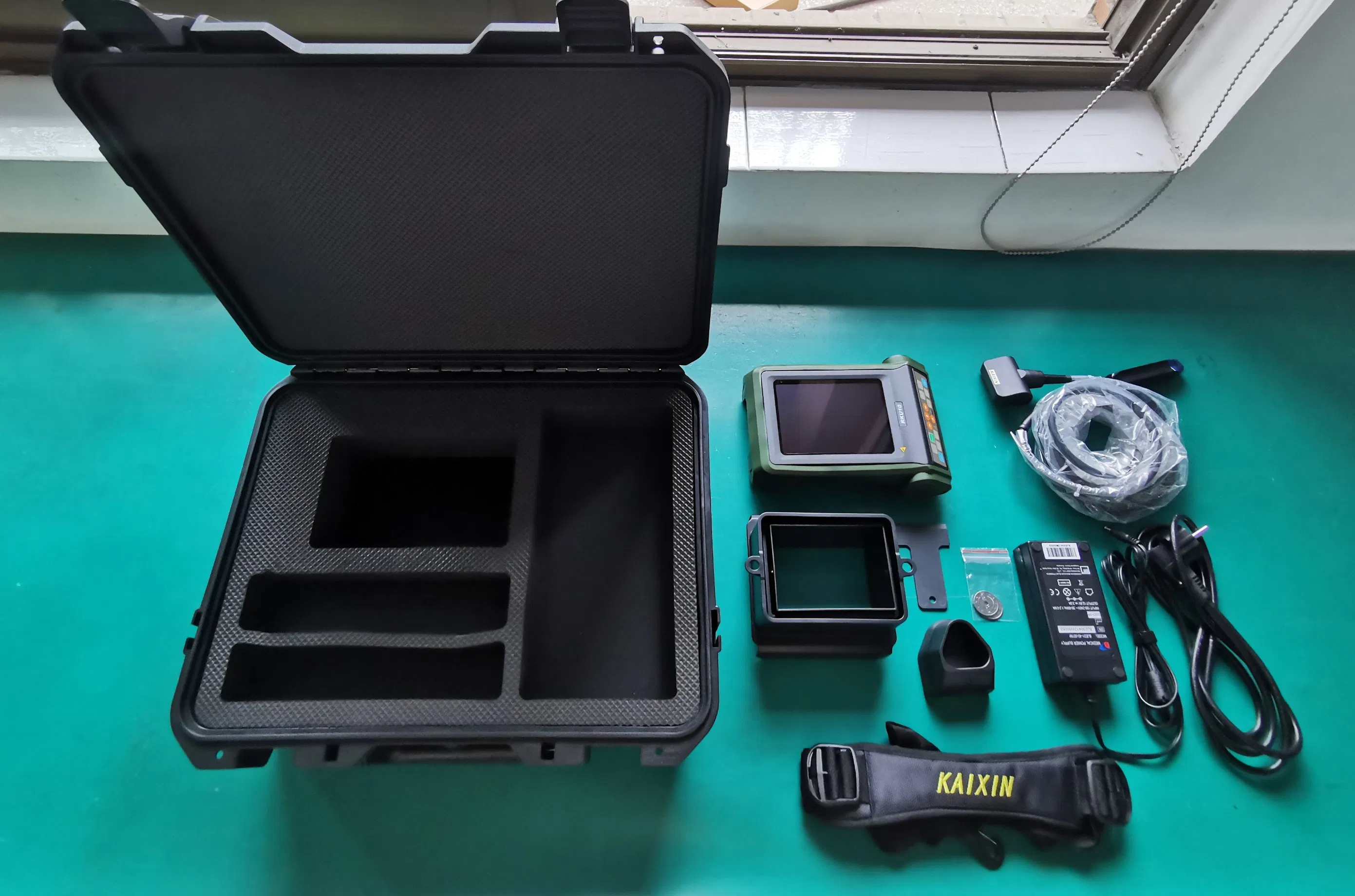

Standard Configuration

✔️ Main unit: 1 pc
✔️ 6.5MHz linear rectal probe: 1 pc
✔️ Power adapter & Internal battery: 1pc each
✔️ Soft rubber coat & Sunshine cover
✔️ Black plastic suitcase
✔️ Base Charger, belt, probe socket spatula

Optional Configuration

✚ 4.0Mhz convex rectal Probe
✚ 6.5MHz micro-convex probe
✚ 3.5MHz convex / Backfat probe
✚ 7.5MHz linear probe
✚ Thermal printer (P93W-S)
✚ Leather Case saddlebag / Extra Battery

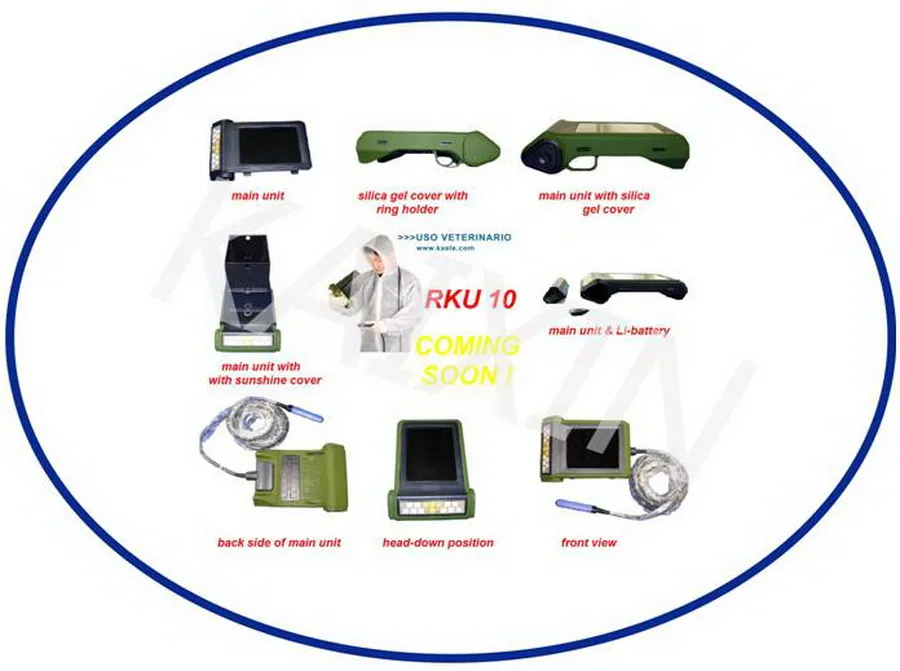

Product Gallery

Frequently Asked Questions

What is the total weight of the RKU 10 scanner?

The main unit is exceptionally light, weighing only 1.1kg, making it highly portable for field use.

How long can the device operate on a single charge?

The built-in high-capacity lithium battery provides over 6 hours of continuous operation.

Is the display suitable for outdoor use?

Yes, it features a 5.7" high-resolution LED with high brightness and contrast, and it comes with an adjustable sunshine cover for clear viewing in bright conditions.

Can it be used for different types of animals?

Absolutely. It is designed for large animals including bovine, equine, ovine, swine, and also works for canine and feline diagnostics.

Does the system support swine back-fat measurements?

Yes, the RKU 10 includes an automatic calculation function for swine back-fat and lean percentage.

What are the storage capabilities for images?

It offers 100 frames of permanent storage and a 256-frame cine loop for review.
