Veterinary Instrument for Cow Horse Goat Swine Palm Diagnostic Ultrasound

1 / 5

Veterinary Instrument for Cow Horse Goat Swine Palm Diagnostic Ultrasound

Customization:	Available
Certification:	ISO13485
Veterinary Instrument:	Use for Cow, Horse, Goat, Swine

Send Inquiry

Product Description

Basic Specifications

Model NO.

RKU10

Palm Ultrasonic

Ring Design, Smart and Light

Clinic

for Animal

Medical Use

Check Pregnancy, Urine Disease of Animal

Scanner Type

with Internal Li-Battery

Package

Standard Export Package

Specification

N. W: 1.1KG; G. W: 6.8KG; Volume: 0.04CBM

Origin

China

HS Code

9018121000

Capacity

5000

Product Description

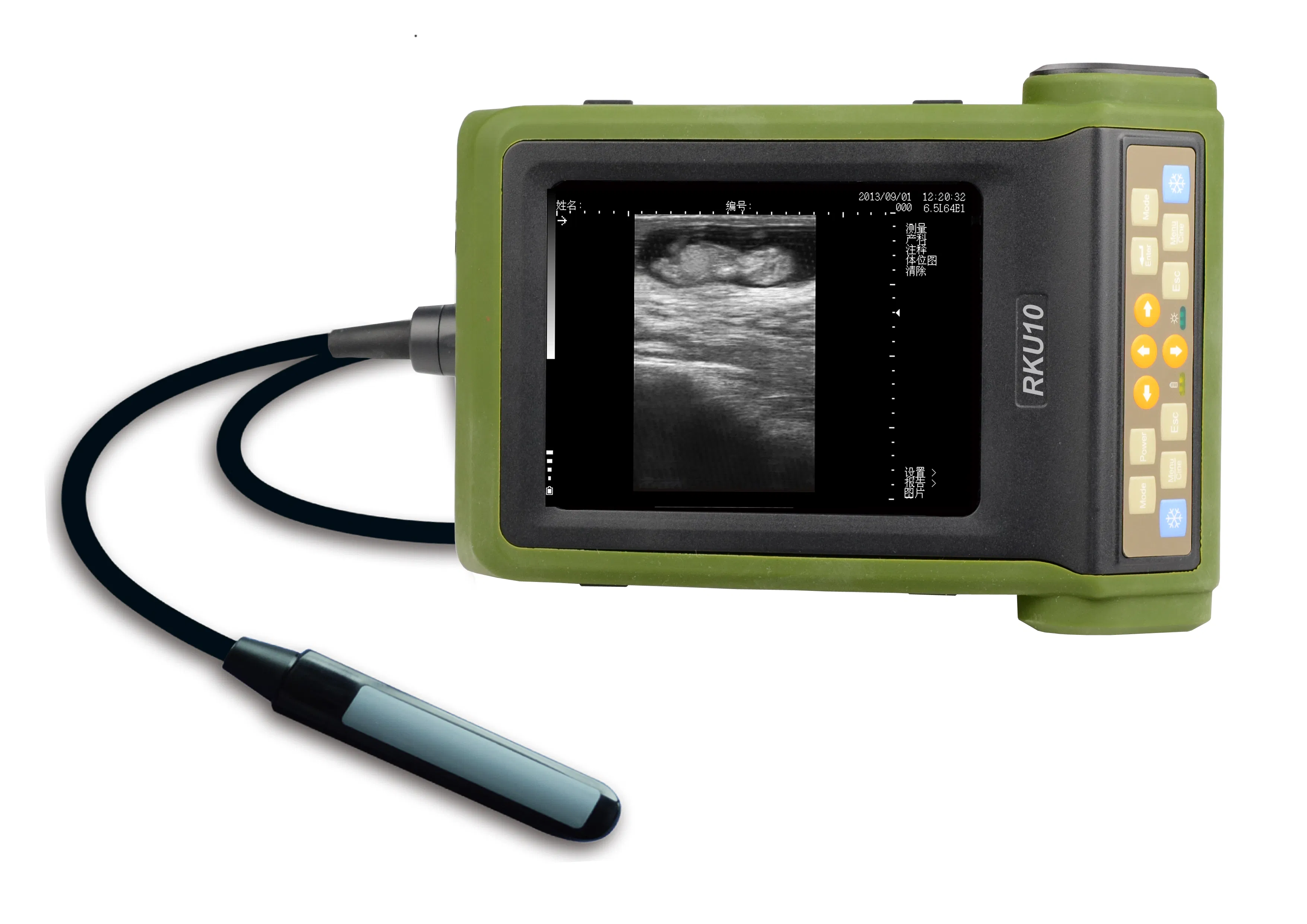

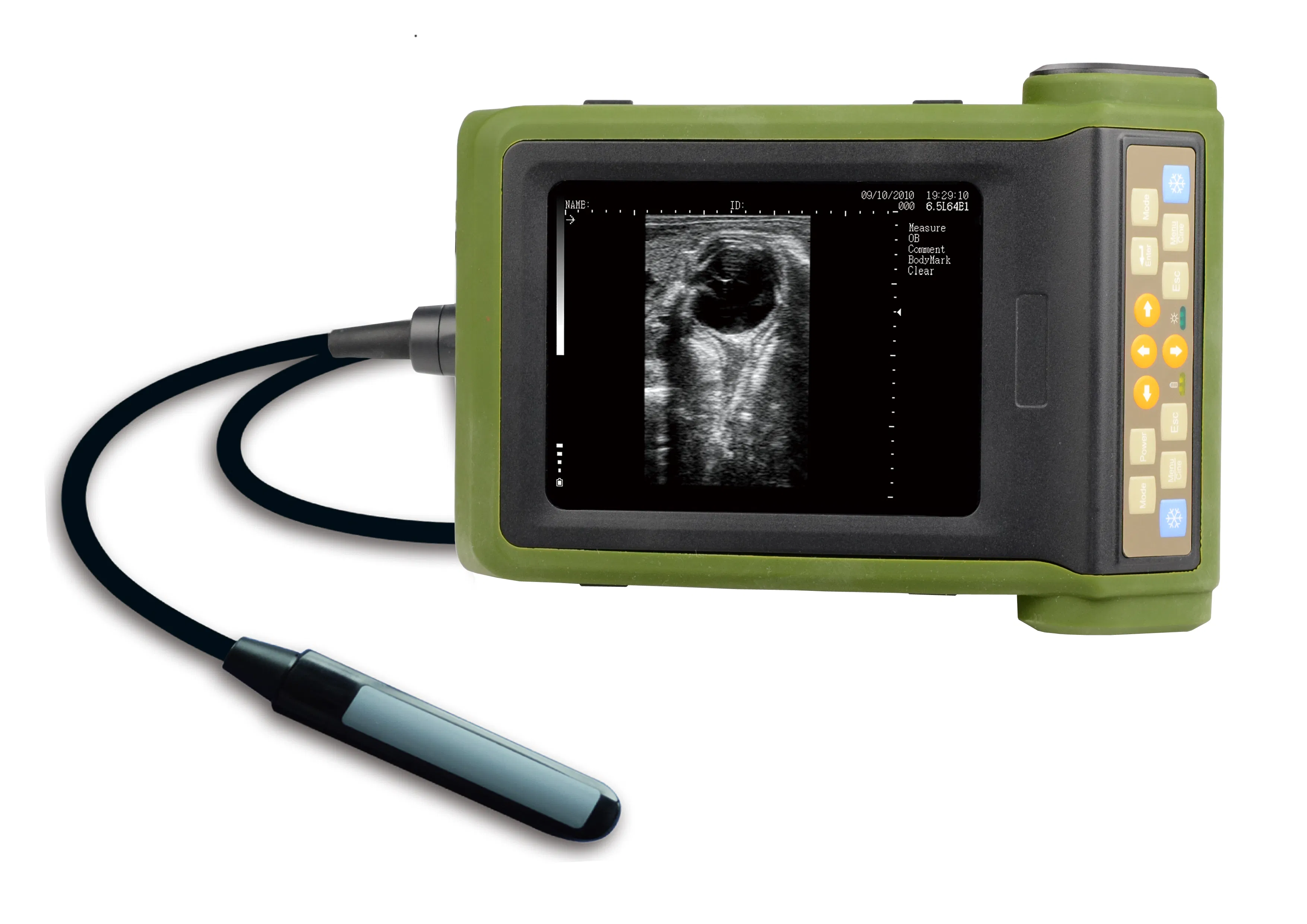

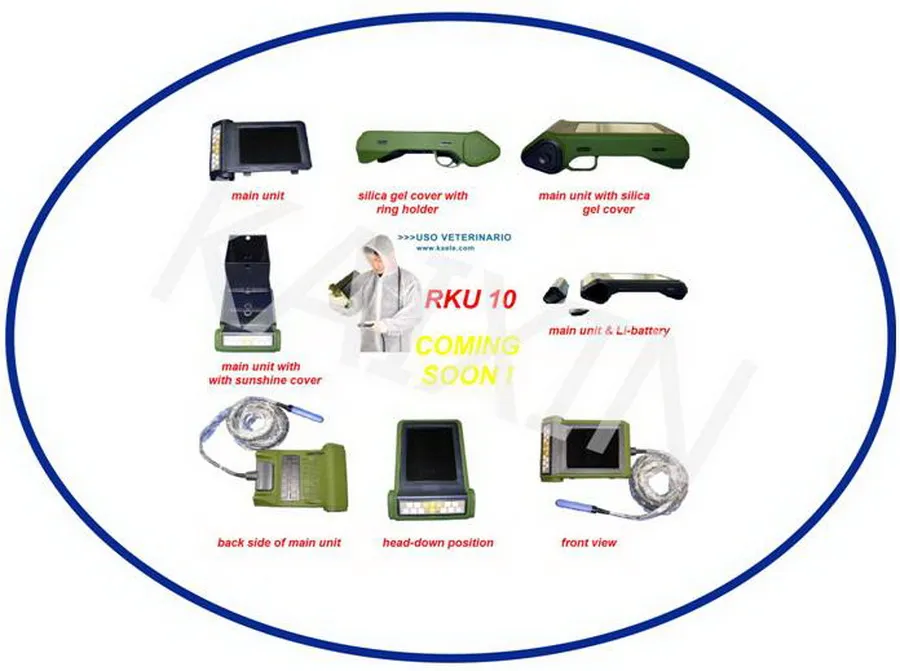

RKU 10 Veterinary Ultrasound Scanner (RING KING ULTRASOUND)

1. Application

The RKU 10 is designed to excel in various normal ultrasound diagnostics, including abdominal scans and pregnancy assessments. Main market focus: pregnancy detection and follicular aspiration in large animals including bovine, equine, ovine, canine, feline, goat, swine, and llama.

2. Key Features

1Weighing just 1.1kg, the RKU 10 is both smart and lightweight.

2Equipped with a high-capacity lithium battery, offering more than 6 hours of continuous operation.

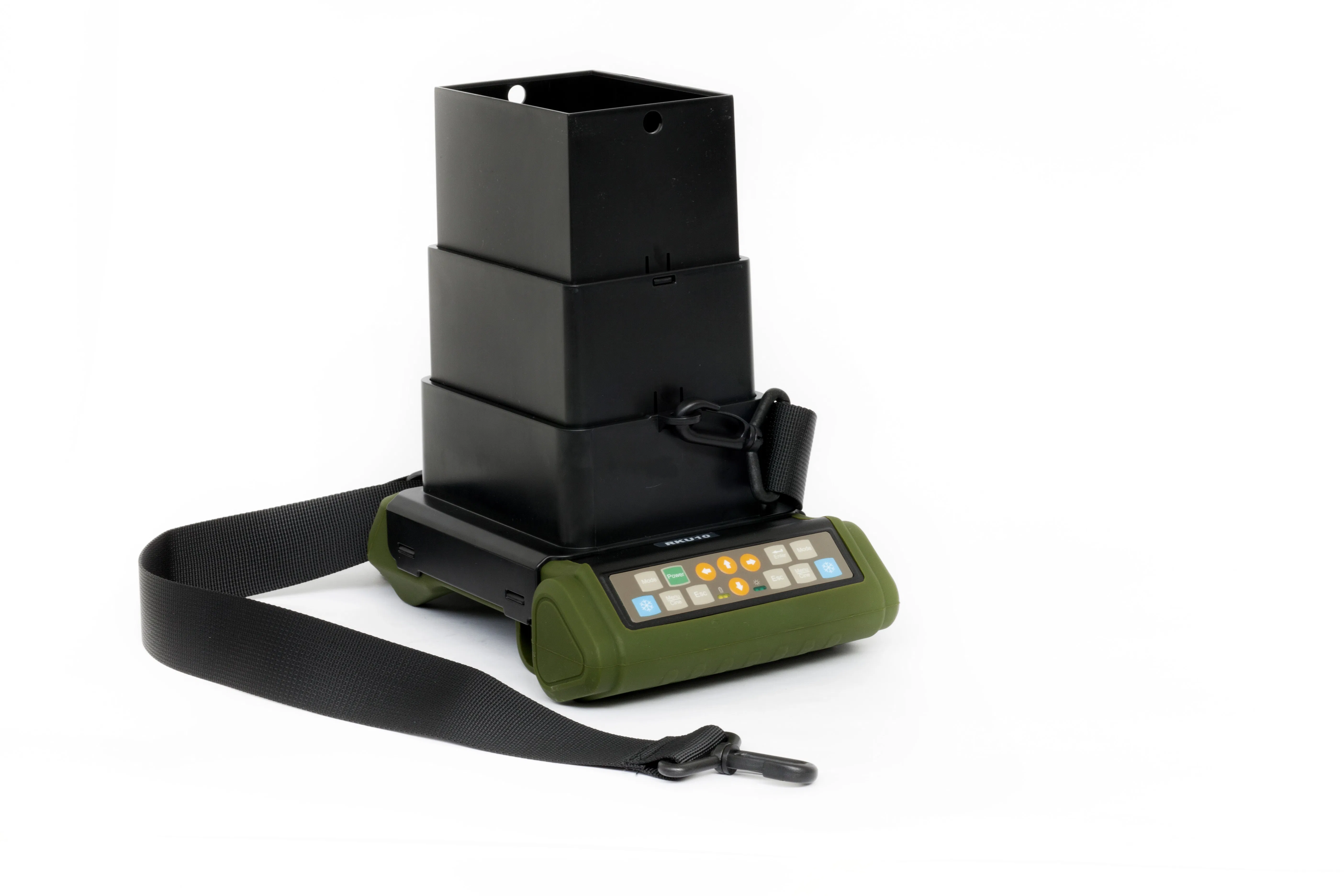

3Featuring a sunshine cover, perfect for outdoor use even in strong sunlight.

4Designed for ambidextrous use, reducing operator fatigue with left and right-hand adaptability.

5Versatile handling options: hand-held, chest-hung, back-hung, or waist-hung.

6Optional professional ultrasound goggles enhance convenience for outdoor applications.

7Protected with a soft rubber coat which is splash-proof and dust-proof.

8Advanced imaging: 2 filter types, 7 compression curves, 100-frame storage, 256-frame cine loop, and back fat/lean percentage calculation for swine.

3. Technical Specifications

Monitor	5.7" high resolution LED display, high brightness/contrast, wide viewing angle
Display Mode	B, 2B, 4B, B/M, M
Gain	0 ~ 127dB
Contrast	27 ~ 90dB
Magnification	0.8, 1.0, 1.2, 1.5, 1.6, 2.0, 2.4, 3.0
Storage	100 frames permanent storage
Cine Loop	256 frames
Normal Measurement	Distance, circumference, area, volume, etc.
Cardio Measurement	Depth, slope, heart rate, cycle
OB Measurement	Cattle, dogs, horses, pig, cats, goats, camels and sheep
Special for Swine	Back-fat and lean automatic calculation function
Grid Measurement	6 types (none, point, line, 10mm point, 2mm point, 10mm&2mm point ruler)

4. Configuration

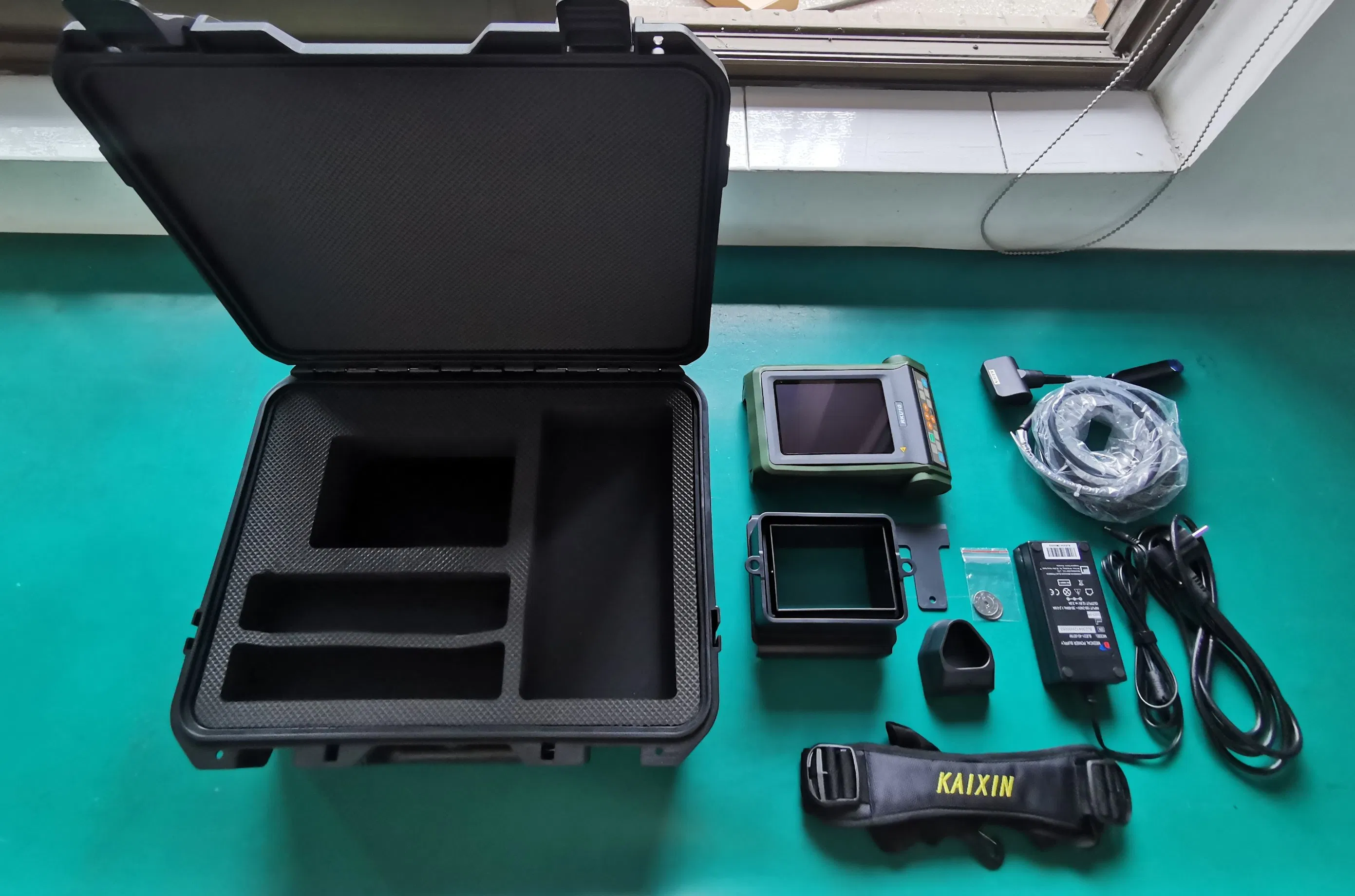

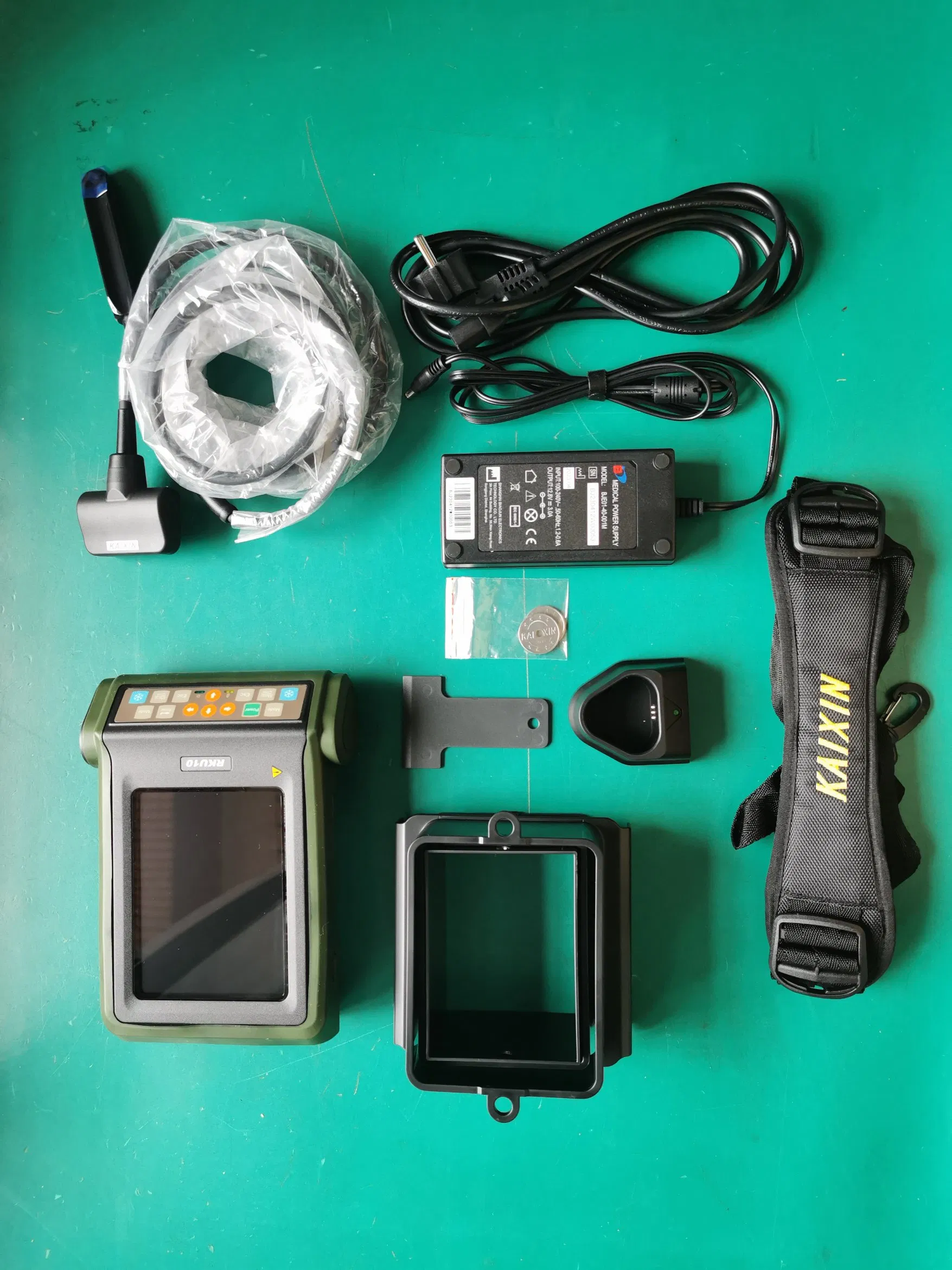

4.1 Standard Configuration

No.	Item Details
1	Main unit: 1 pc
2	6.5MHz linear rectal probe: 1 pc
3	Power adapter: 1 pc
4	Internal lithium battery: 1pc
5	Soft rubber coat: 1pc
6	Sunshine cover: 1 unit (adjustable)
7	Black plastic suitcase: 1 pc
8	Base Charger, belt, probe socket spatula: 1 pc each

4.2 Optional Configuration

1	4.0Mhz multi-frequency convex rectal Probe
2	6.5MHz multi-frequency micro-convex probe
3	3.5MHz multi-frequency convex probe
4	7.5MHz multi-frequency linear probe
5	3.5MHz Backfat probe
6	Thermal printer (P93W-S)
7	Lithium Battery (5200mAH)
8	Leather Case saddlebag

Frequently Asked Questions

What are the primary applications for the RKU 10 scanner?

The RKU 10 is specialized for abdominal scans and pregnancy detection in large animals like cattle, horses, sheep, and swine, as well as follicular aspiration.

How long does the battery last during field use?

Equipped with a high-capacity internal lithium battery, it provides more than 6 hours of continuous operation on a single charge.

Is the screen visible in bright outdoor conditions?

Yes, it features a 5.7" high-resolution LED display with high brightness and contrast, supplemented by an adjustable sunshine cover for clear viewing in strong light.

How portable is the device for veterinary work?

The device is extremely portable, weighing only 1.1kg. It offers multiple handling modes including hand-held, chest-hung, back-hung, or waist-hung to suit different environments.

Can it perform specialized measurements for swine?

Yes, the RKU 10 includes an automatic calculation function specifically for back-fat and lean percentage in swine.

Is the equipment durable for farm environments?

The scanner is wrapped in a soft rubber coat, making it both splash-proof and dust-proof, ideal for demanding clinical and field settings.
