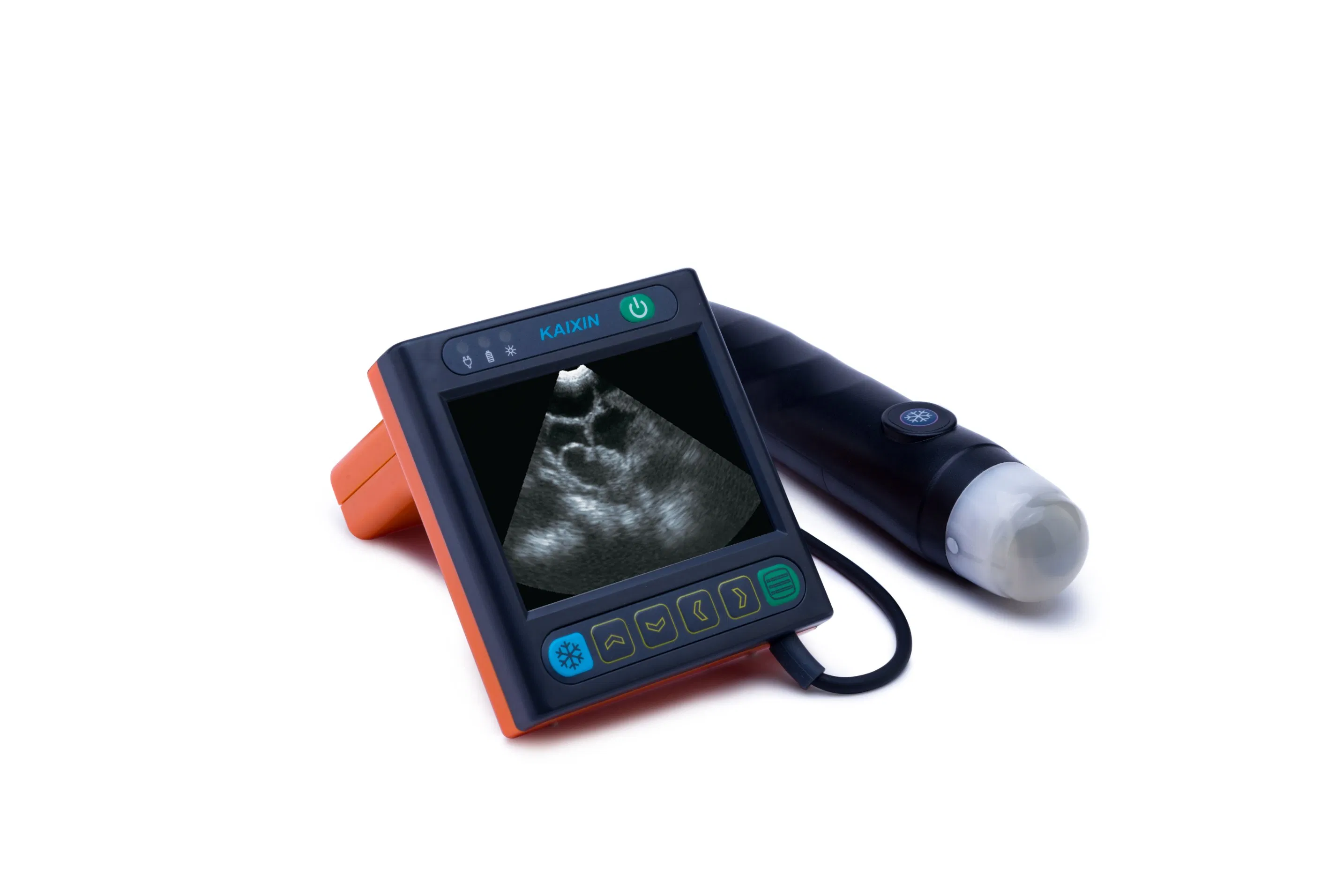

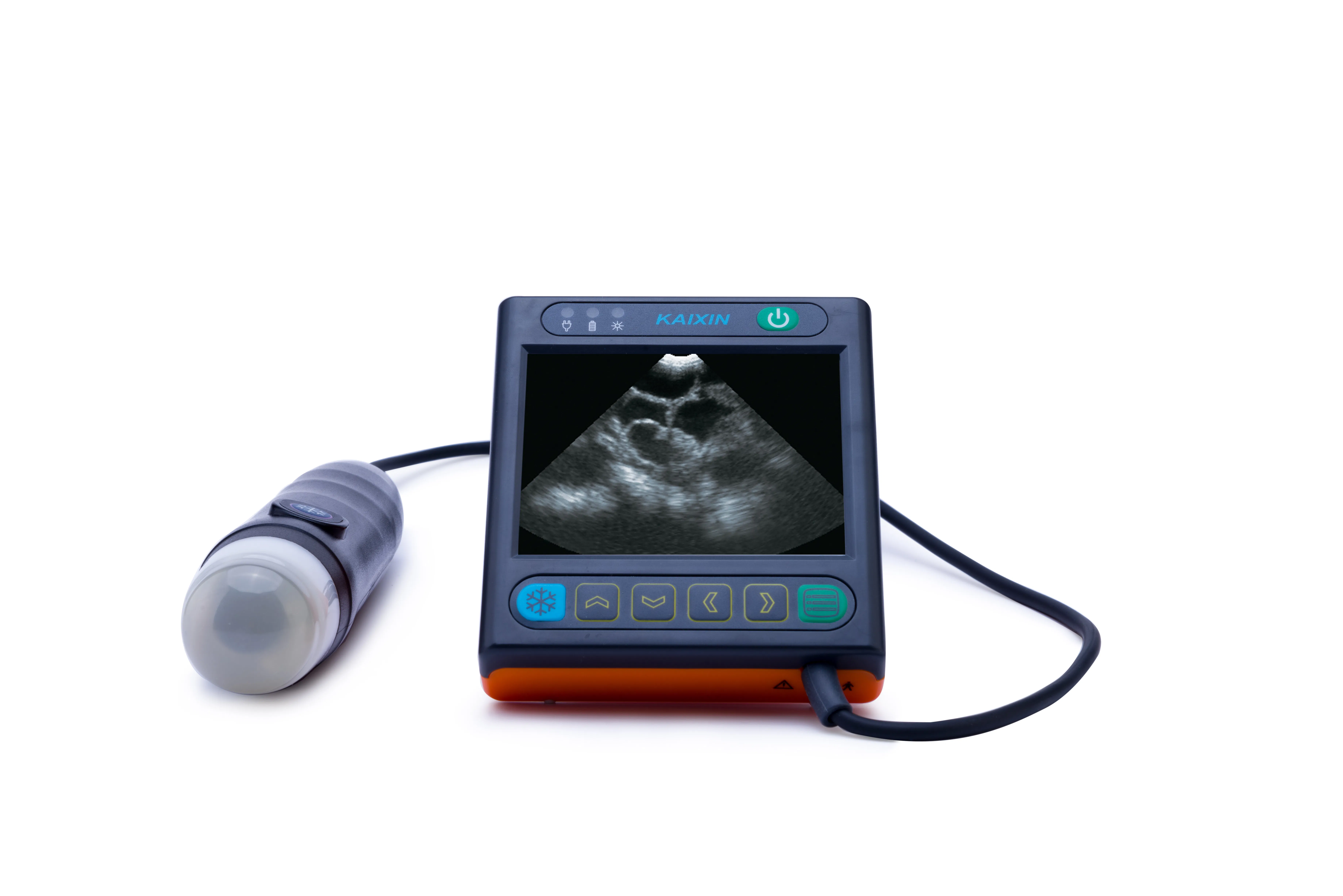

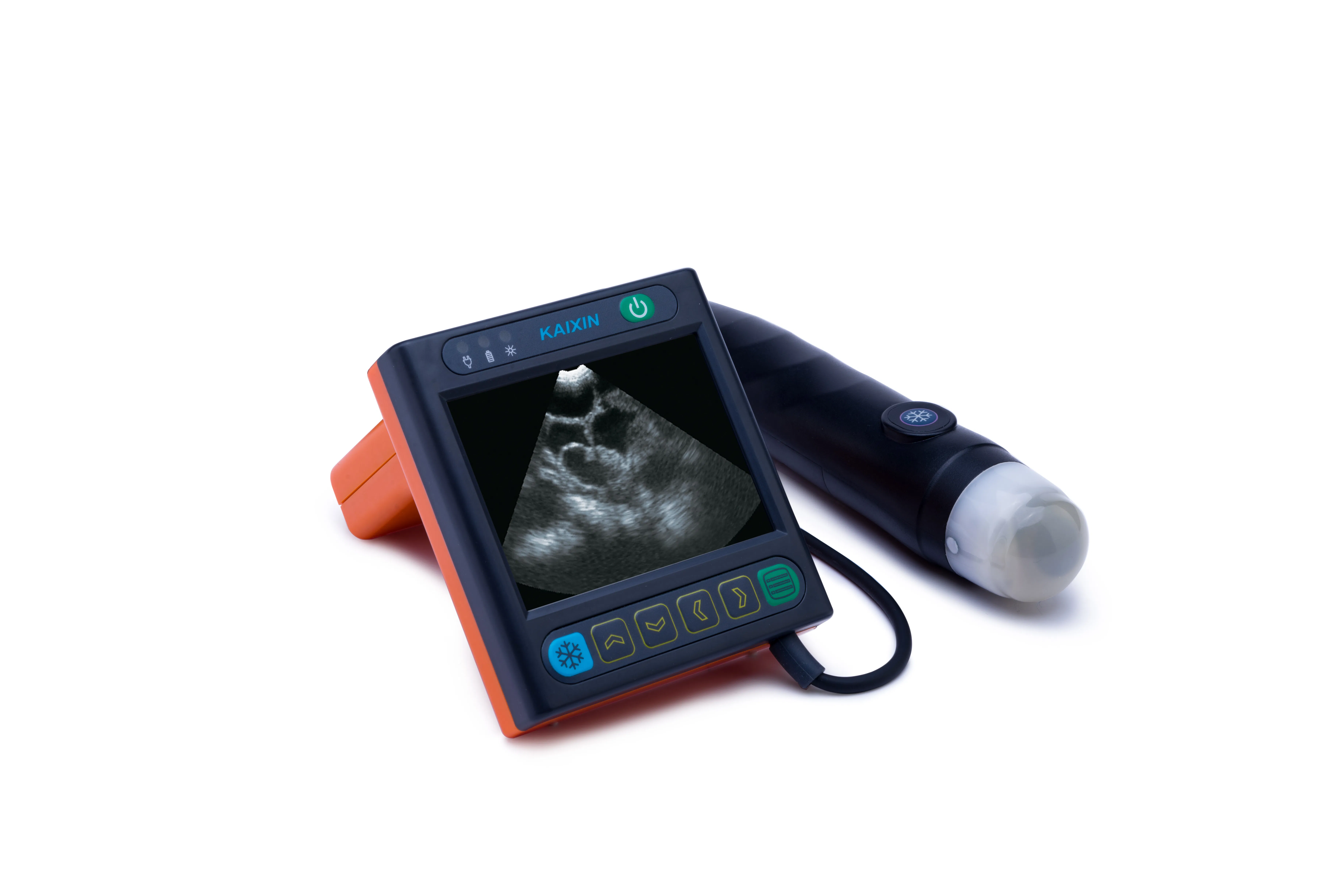

Veterinary Ultrasound Instrument for Swine, Goat, and Pet Diagnostics

Customization:	Available
Certification:	ISO13485
Type:	Veterinary Ultrasound Scanner

Send Inquiry

Product Description

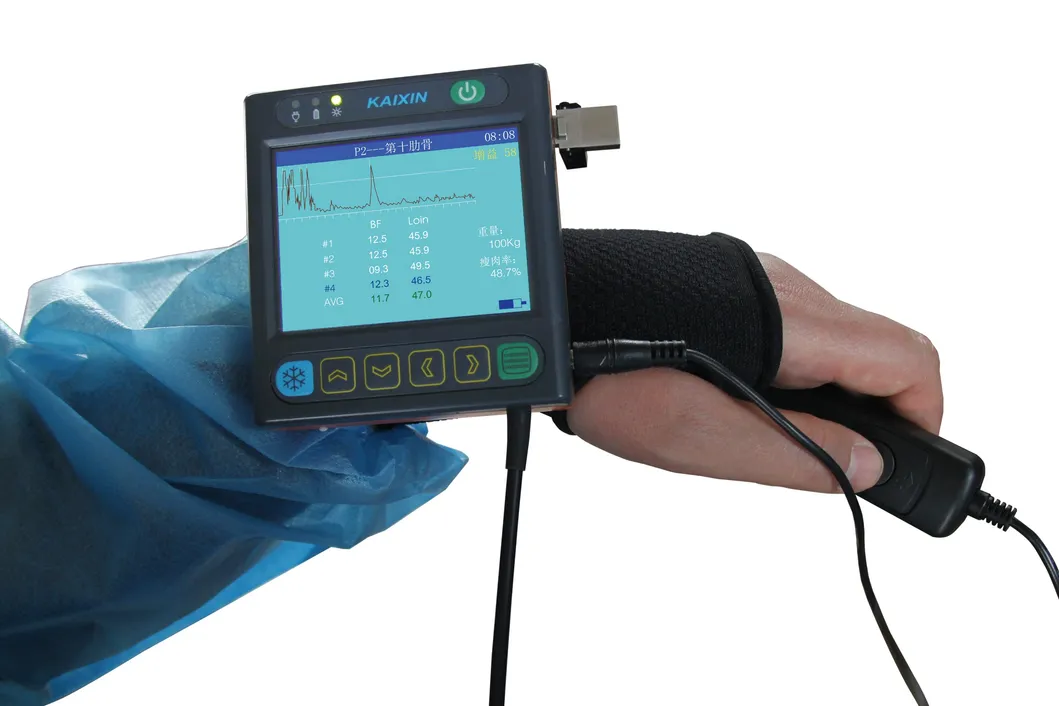

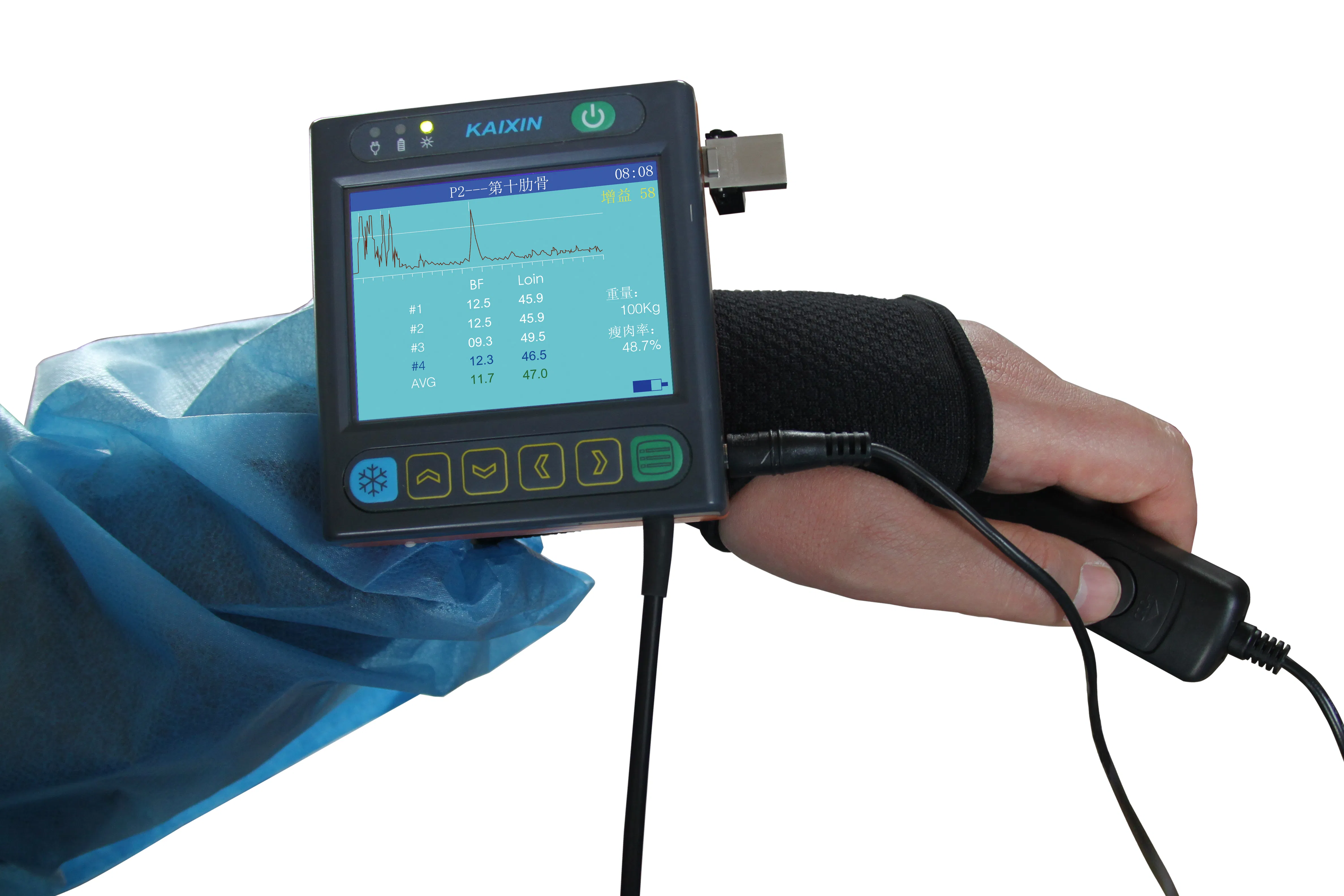

Wrist Design: MSU 3

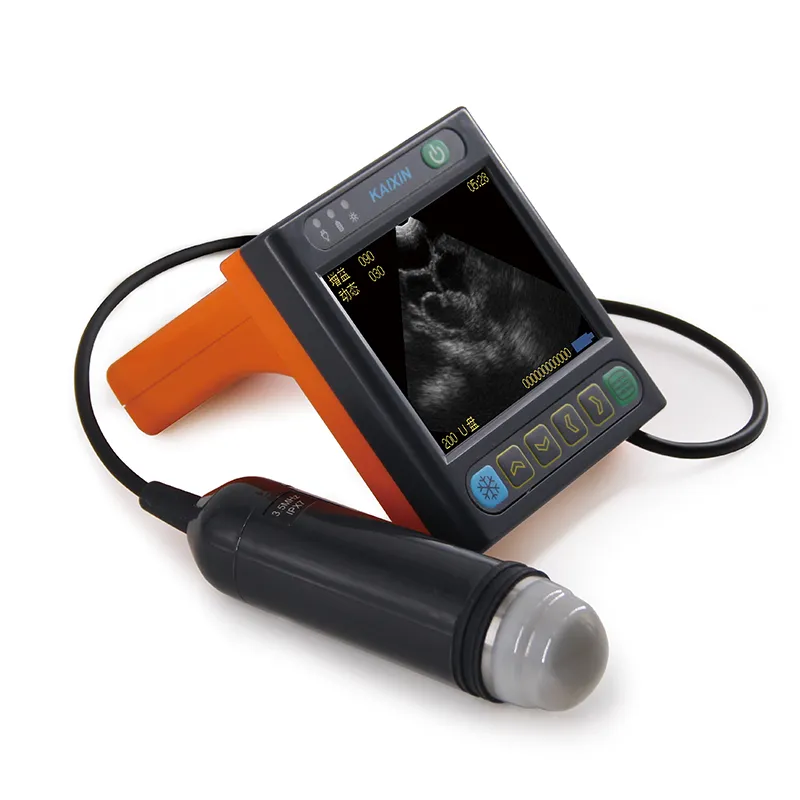

Embrace a higher standard of precision with our Full Digital Mechanical Sector Ultrasonic Diagnostic Instrument, engineered to deliver outstanding diagnostic clarity.

Basic Specifications

Model NO.	MSU3
Syringe	Sector Probe
Blood Sampling Needle	Scanner
Breathing Pattern	Pregnancy Checking
Control Method	Backfat Checking
Veterinary Instrument	Using for Swine, Goat, Cats and Dogs
Application Field	Farm, Agro, Dairy
Instrument Type	Pregnancy Test Instrument
Internal Battery	Work More Than 300 Minutes
Backfat Instrument	Automatically Calculate The Backfat
Lean Percentage	Test Swine Lean Percentage
Transport Package	Standard Export Package
Specification	N. W: 620g; G. W: 2KG
Origin	China
HS Code	9018121000

Technical Parameters

Monitor	3.5" high resolution color LCD, smart, light and portable, suitable for outdoor use
Gray Scale	256
Display Mode	B, 2B, A (total 3 kinds)
Gain Range	27 ~ 90dB (B mode and A mode)
Languages	Chinese, English, French, German, Spanish, Portuguese
Compression Curve	4 kinds, from 0 ~ 3
Pseudo-color	0 ~ 7, 8 kinds (including black and white)
Power Supply	100-240V ± 10% 1.2-0.6A; Frequency: 50-60Hz ± 1Hz
Battery Configuration	2600mAh lithium battery (300+ minutes work time)
Image Storage	Stored in U disk (Image or measurement data)
Measurement	Backfat thickness, loin muscle thickness and lean percentage
Net Weight	620g
Main Unit Size	90 × 98 × 25mm (L x W x H)
Ear Tag Function	Unique scanning function within 10-30 seconds

Standard Configuration

Main unit: 1 pc
3.5MHz mechanical sector probe: 1 pc
Power adapter: 1 pc
Internal battery: 1 pc
Power line: 1 pc
Shutter release line: 1 pc
Straps: 1 pc
Instrument backpack: 1 pc
OTG U disk: 1 pc

Product Gallery

Frequently Asked Questions

Q: What animals is the MSU3 suitable for? A: It is specifically designed for use with swine, goats, cats, and dogs, making it ideal for both farm and pet clinical environments.

Q: How long does the internal battery last? A: The MSU3 comes with a high-capacity 2600mAh lithium battery that supports more than 300 minutes of continuous operation.

Q: Can it measure backfat and lean percentage? A: Yes, it features automatic calculation functions for backfat thickness, loin muscle thickness, and lean percentage.

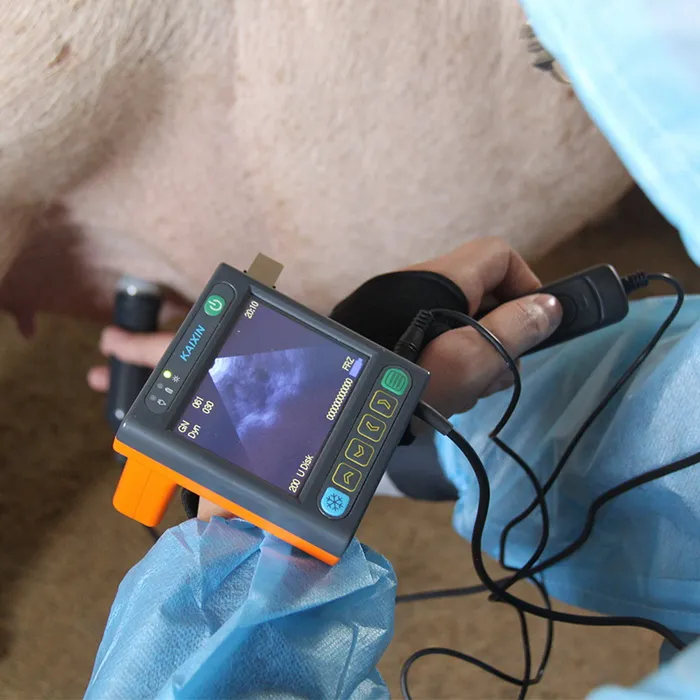

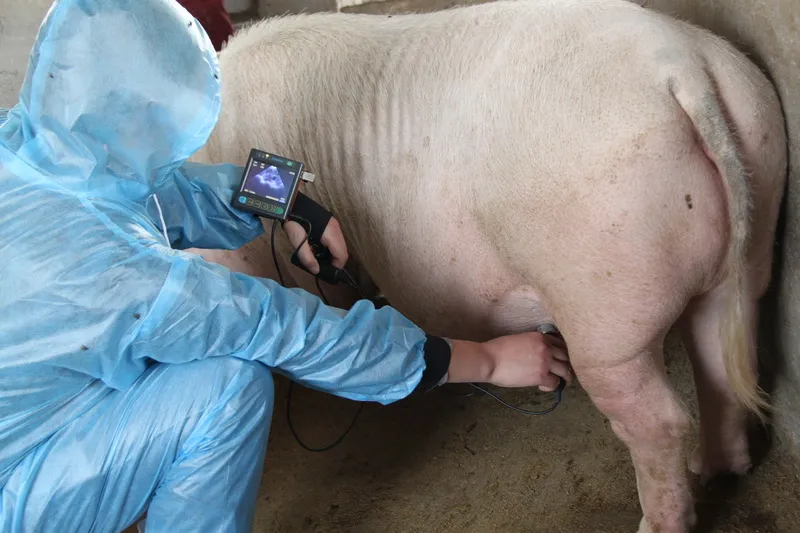

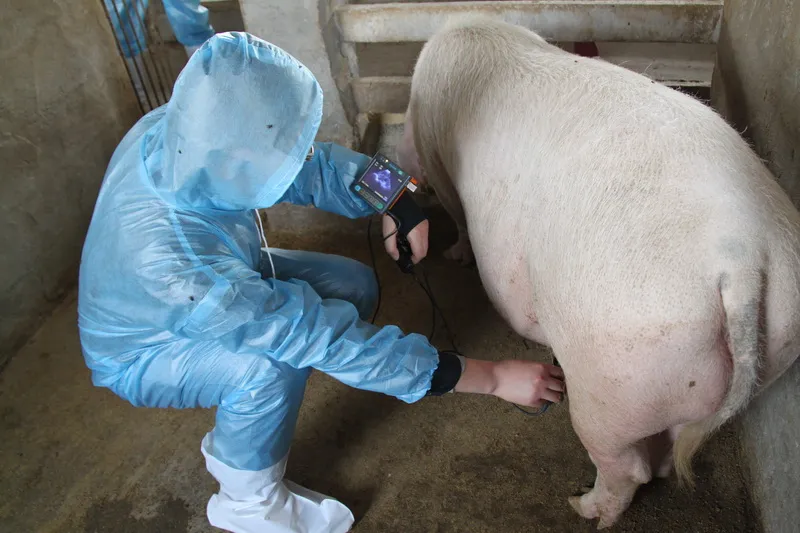

Q: Is the device portable for field use? A: Absolutely. It features a wrist design and weighs only 620g, equipped with a 3.5" high-resolution LCD specifically suited for outdoor use.

Q: What display modes are available? A: The instrument supports three display modes: B, 2B, and A modes, providing flexibility for different diagnostic needs.

Q: What languages are supported by the software? A: The MSU3 supports multiple languages including Chinese, English, French, German, Spanish, and Portuguese.
